Description
|
Lamp Information
|
|
|
Wattage
|
180w
|
|
Working voltage
|
DC 9-32V
|
|
LED Brand
|
CREE
|
|
Light Color
|

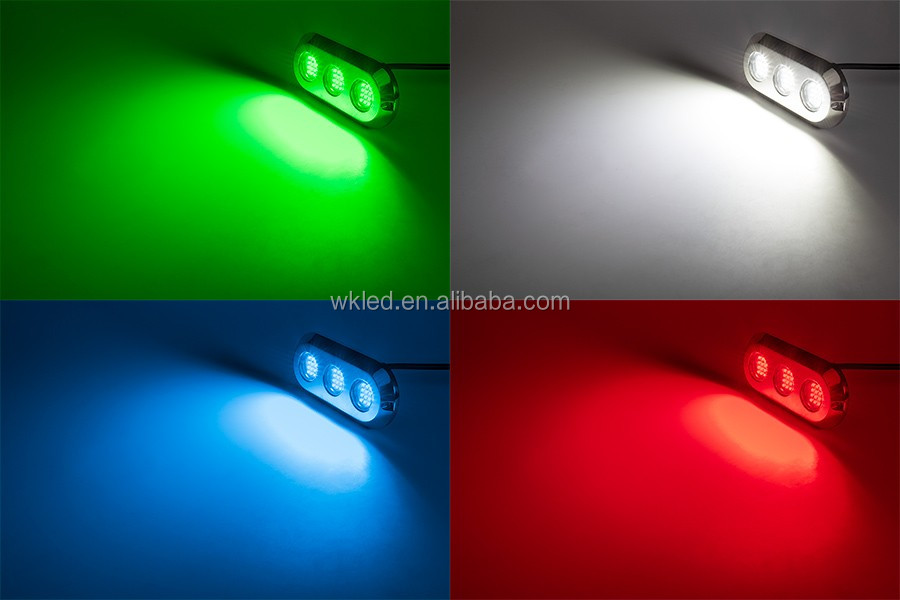

Red/Green/Blue/Yellow/White/RGB
|
|
Material
|
316L Stainless Steel
|
|
IP Rating
|
IP68
|
|
Certification
|
CE, RoHS
|
|
Warranty
|
3 years
|
|
180W Surface Mount Underwater Light
|
||||||||
|
1.LED Chip Brand: CREE 2.Working Voltage(V): Single color DC 9-32v(build-in driver) RGB color DC 12v
3.Emitting Angle of Peak(θ):120
4.Unit:Piece
5.Package Size(cm):18*13*6
6.Product Description:Internal drive
7.Waterproof Level:IP68
8.Case Material:316L Marine Stainless Steel
9.Warranty:3 years
|
||||||||
|
Part No.
|
Power
(W) |
Emitting Color
|
Current
@13.5V |
Output
(watt) |
Wavelength(nm)
|
Luminous Flux(Lm)
|
Net Weight
|
Gross Weight
|
|
WKU-180R
|
36X5W
|
Red
|
7.2A
|
97.2w
|
630
|
4611
|
1500
|
|
|
WKU-180G
|
36X5W
|
Green
|
9.6A
|
130w
|
520
|
5205
|
1500
|
|
|
WKU-180B
|
36X5W
|
Blue
|
9.6A
|
130w
|
460
|
2160
|
1500
|
|
|
WKU-180Y
|
36X5W
|
Yellow
|
9.6A
|
130w
|
590
|
/
|
1500
|
|
|
WKU-180W
|
36X5W
|
White
|
9.6A
|
130w
|
/
|
8853
|
1500
|
|
|
WKU-180RGB
|
36X5W
|
RGB
|
8A
|
108w
|
/
|
2197-8796
|
1500
|
|
316L Stainless Steel Material
>The vibration and shock resistant led underwater light has a 316L marine grade stainless steel housing.
>Bluetooth control & wireless remote control.
>IP 68 100% waterproof.
Easy Install
> Exclusive over temperature protection ensures the light can operate above without damage,no external driver within a wide 9-32V DC range,there are fewer connections and devices to fail and less equipment to mount
Thin Profile
>LED underwater lights has overheat protection , you can test the lights out of water.
>OEM service to print your own logo for free.

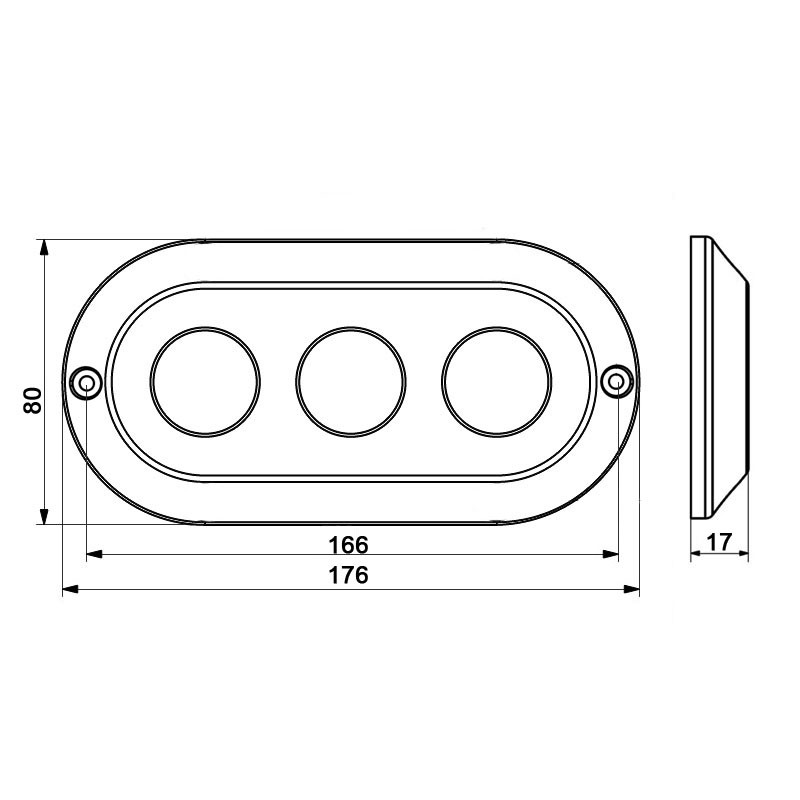

>Super lower profile (17mm) and smaller footprint,diameter of light body is 176mm

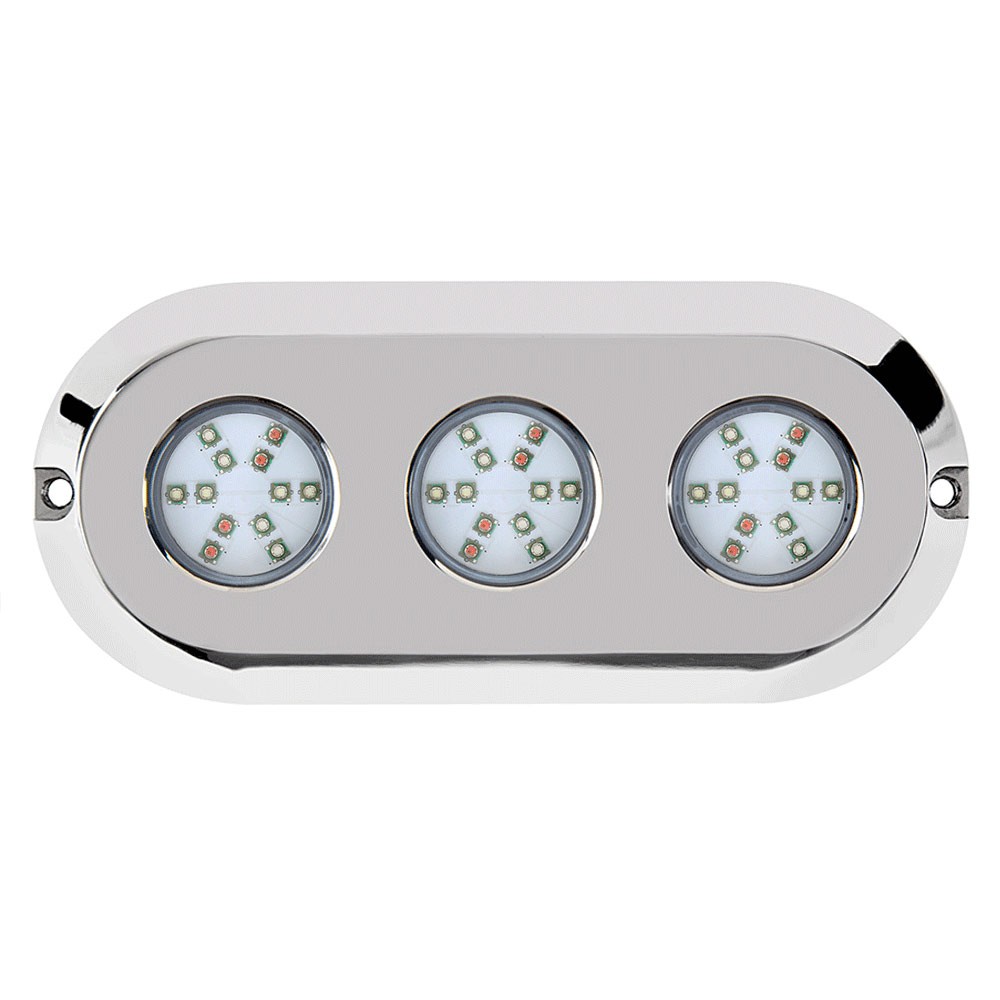

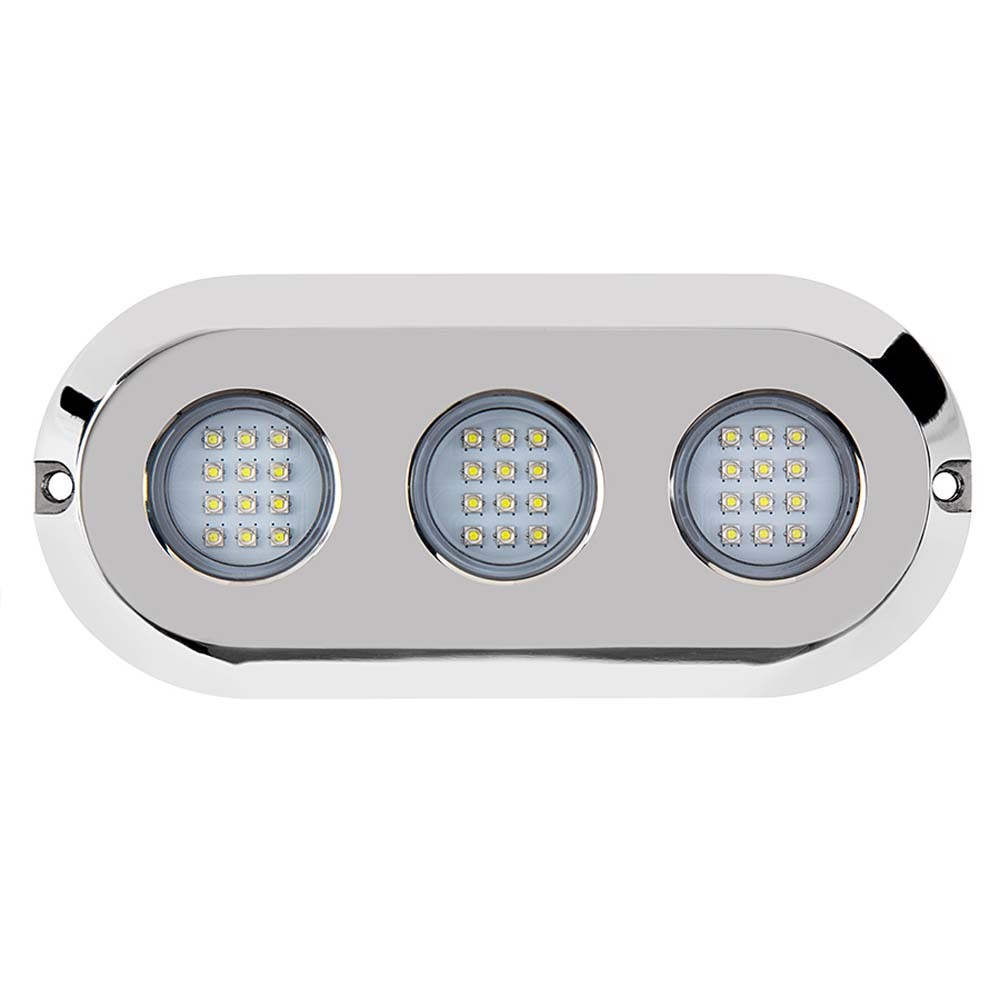

Different LED Arrangement
>Cree 5watt LED, 36 LED insides, total 180W super brightness.
>The LEDs arrangement of single colors is different
to RGB color.

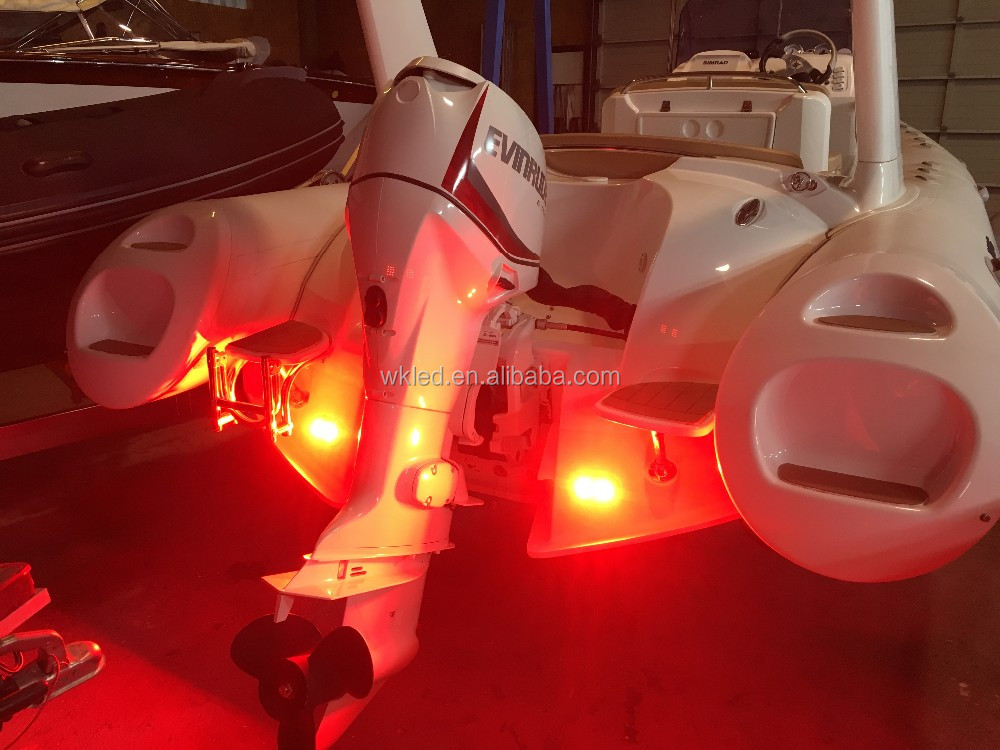

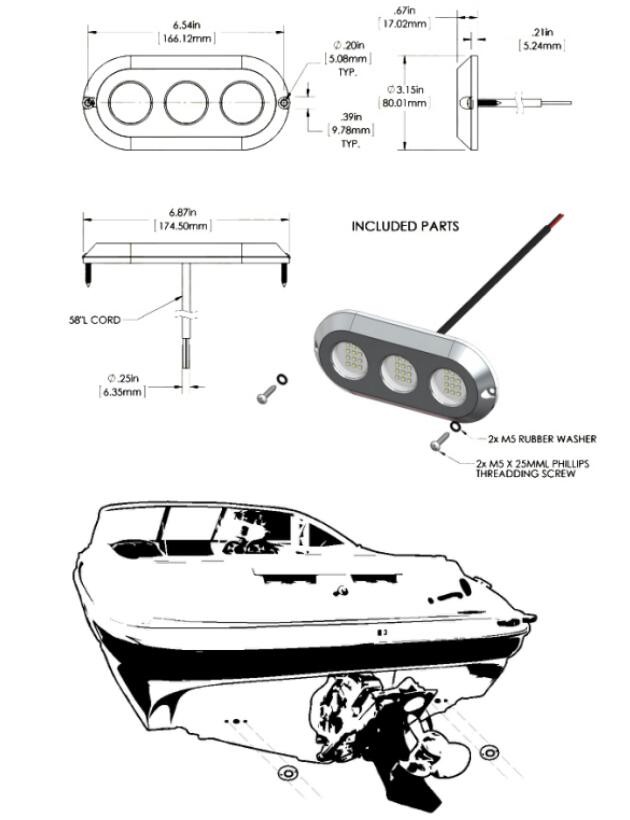

Installation Process for Boat

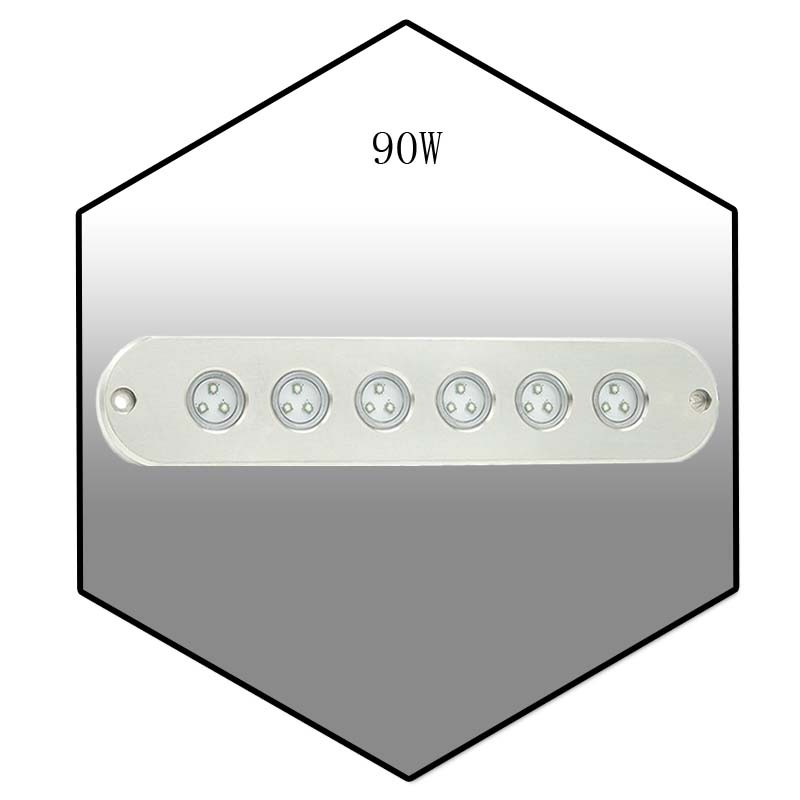

WEIKEN OTHER LED UNDERWATER LIGHT SERIES
Applications
