Description
Overview:
Quick Details
- Place of Origin: Fujian, China
- Brand Name: RN-Solar
- Model Number: RN-CSA

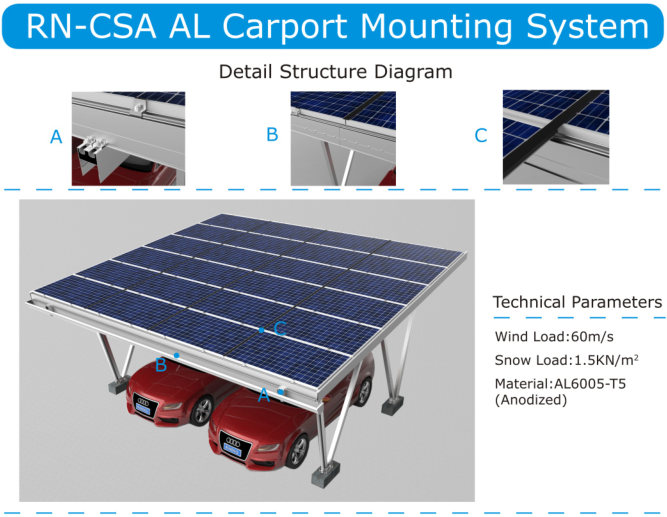

- Wind Load: 60 m/s
- Snow Load: 1.5 KN/m2
- Warranty: 10 Years Warrenty, 10 Years
- Material: AL6005-T5(Anodized)
- Height: >2500mm
- Tilt Angle: 5-10 Degree
- Module Orientation: Portrait/Landscape
- Standard: AS/NZS 1170,JISC8955
- Mounting Type: Carport Mounting
- Installation Site: Open Field
Supply Ability:
- Supply Ability: 20 Set/Sets per Month
Packaging & Delivery:
- Packaging Details: Standard sea worth packing, fixed on steel pallet with steel ropes
- Port: Xiamen, China

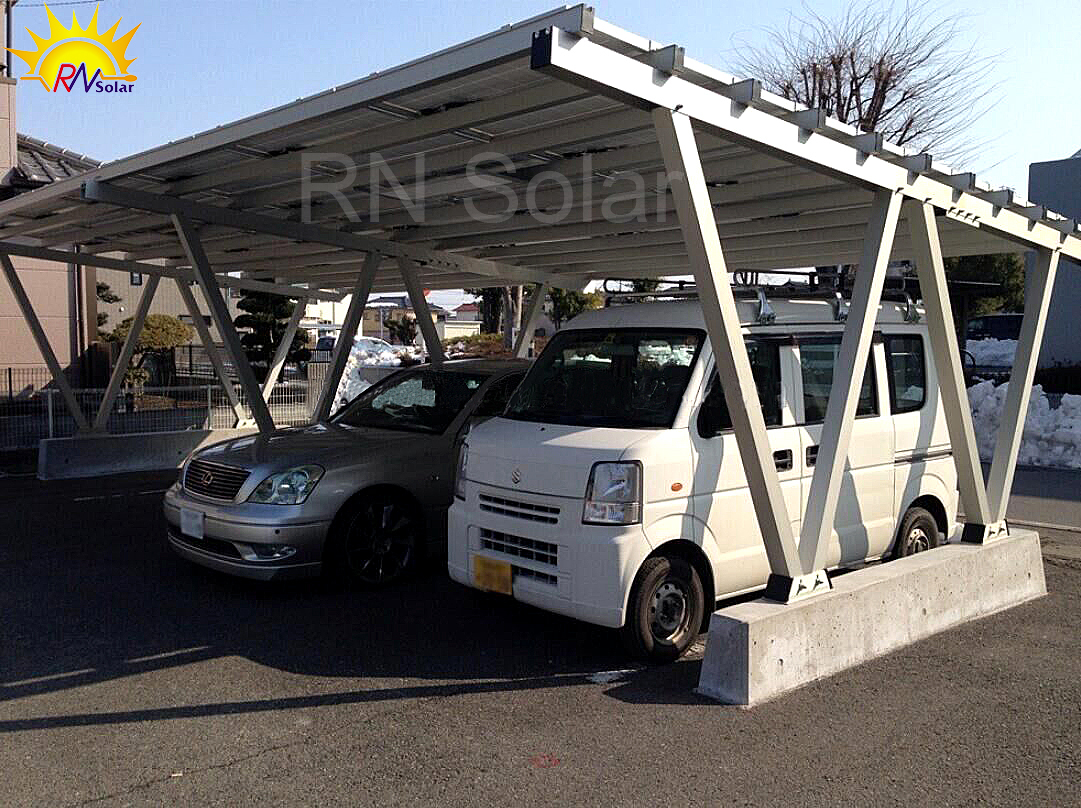

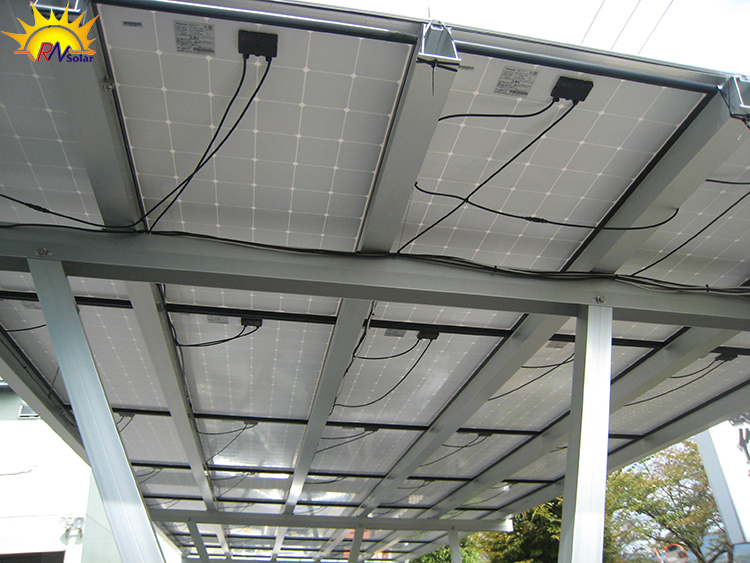

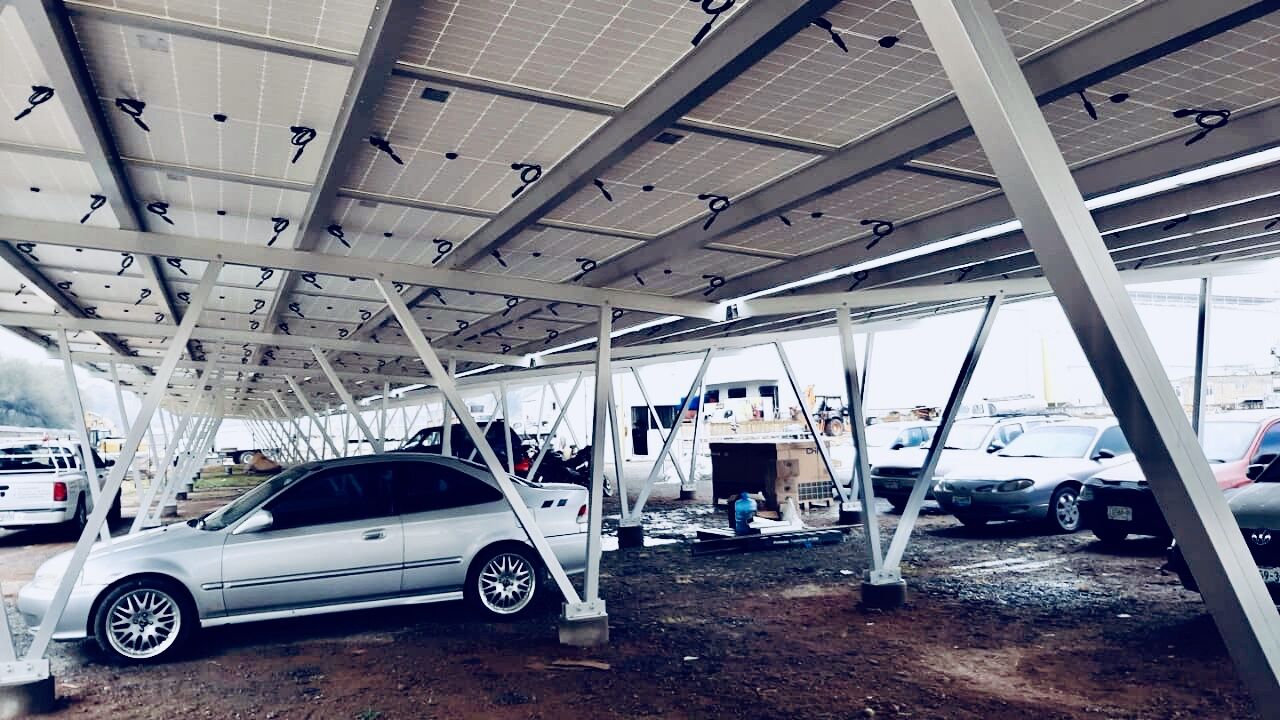

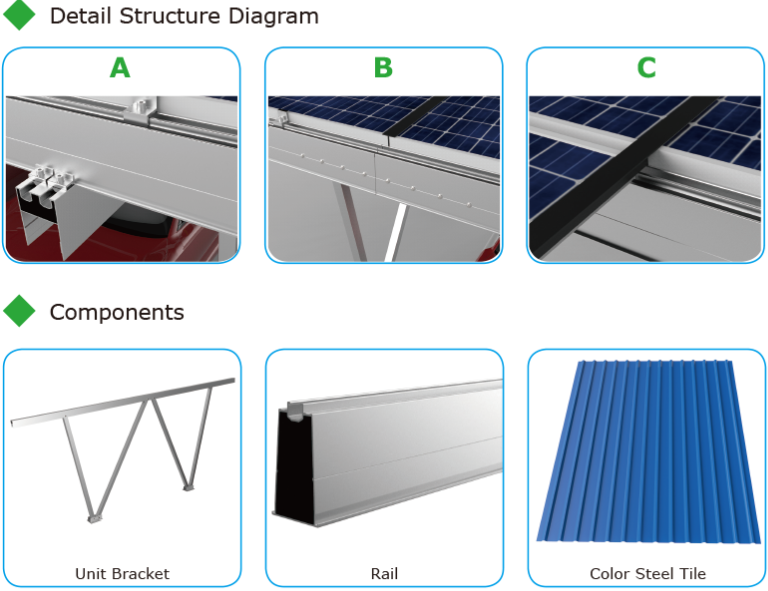

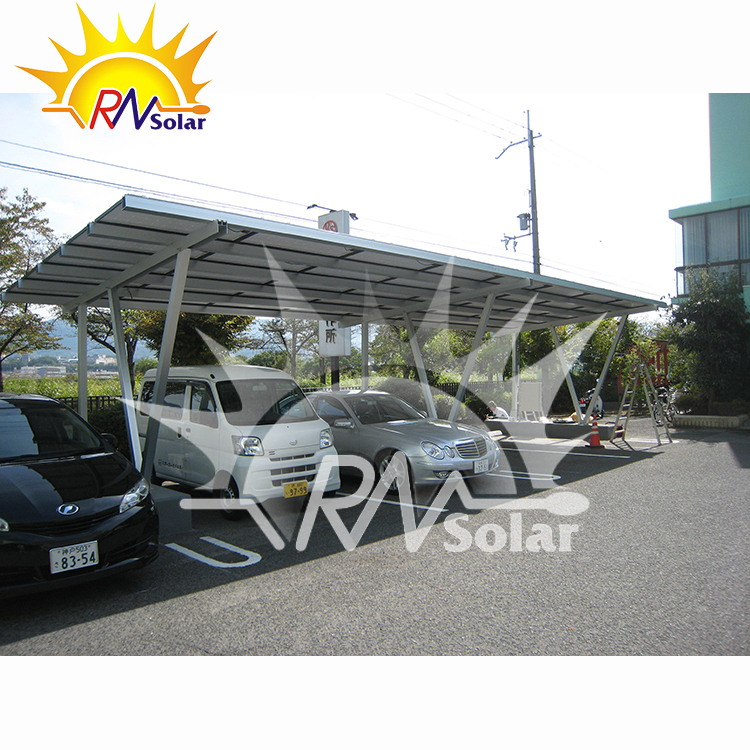

Economic and Practical: The W-shape structure is made of anodized aluminum,with advantages of light weight,highly structural strength,good corrosion resistance,easy installation,making the whole system of practical and economic features.
Quick Installation: The bracket is maximally pre-assembled with less mounting parts,requiring no on-site cutting or drilling,and further saves on-site installation time. Flexible and Adjustable: Fully considering of the construction error,the column and base can be adjusted more flexibly,which can realize the adjustment in up and down,left and right,front and back directions,and reduce the difficulty of construction.
Safe and Reliable: The W-shape structure has been rigorously calculated and tested to against the harshest weather conditions,ensuring safety and reliability. Applicability: The unique design of the carport shed can make good rainproof effect at the lowest cost.Moreover,waterproof through around the system,for your choice,can increase water guiding function and make it more beautiful on appearance. Easy Transportation: Highly compact structure and pre-assembled design reduce the loading space.
Quick Installation: The bracket is maximally pre-assembled with less mounting parts,requiring no on-site cutting or drilling,and further saves on-site installation time. Flexible and Adjustable: Fully considering of the construction error,the column and base can be adjusted more flexibly,which can realize the adjustment in up and down,left and right,front and back directions,and reduce the difficulty of construction.
Safe and Reliable: The W-shape structure has been rigorously calculated and tested to against the harshest weather conditions,ensuring safety and reliability. Applicability: The unique design of the carport shed can make good rainproof effect at the lowest cost.Moreover,waterproof through around the system,for your choice,can increase water guiding function and make it more beautiful on appearance. Easy Transportation: Highly compact structure and pre-assembled design reduce the loading space.
|

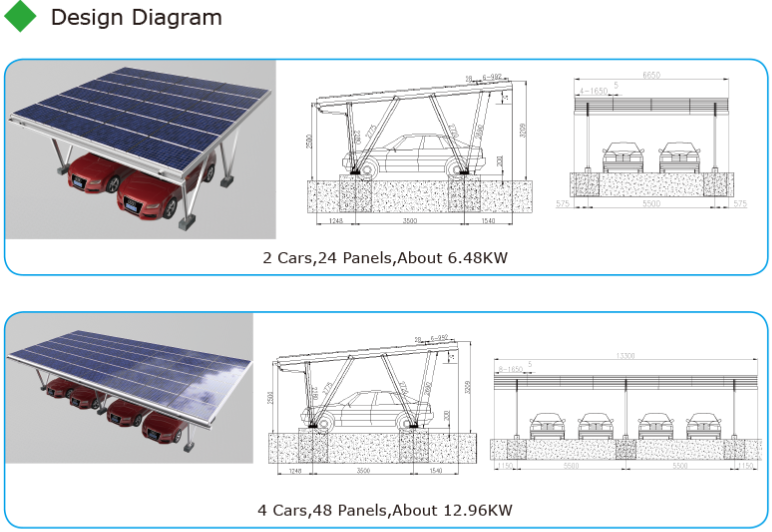

Numbers of modules
|
24(1960*992940mm)（customize）
|
|||
|
Material
|
Aluminium 6005-T5(Anodized)
|
|||
|
Tilt Angle
|
5°-10°
|
|||
|
Warranty
|
10 years
|
|||
|
Module Orientation
|
Portrait/Landscape
|
|||
|
Terrain Clearance
|
Above 2500mm
|
|||
|
Standard
|
AS/NZS1170, JISC8955,Euro code8,DIN1055,IBC2006
|
|||
|
Services
|
OEM Service Offered
Design Service Offered |
At the same time we provide a complete set of solar system components we have professional engineers to design for you free of charge click to consult
