240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

Color Temperature(CCT): 3000-6000k
Input Voltage(V): AC 110V ( ± 10%)
Lamp Luminous Efficiency(lm/w): 130
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, DIALux evo layout
Lifespan (hours): 50000
Working Time (hours): 50000

Description

Quick Details
Color Temperature(CCT): 3000-6000k
Input Voltage(V): AC 110V ( ± 10%)
Lamp Luminous Efficiency(lm/w): 130
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, DIALux evo layout
Lifespan (hours): 50000
Working Time (hours): 50000
Type: LED High Bay Low Bay Lighting
Light Source: LED

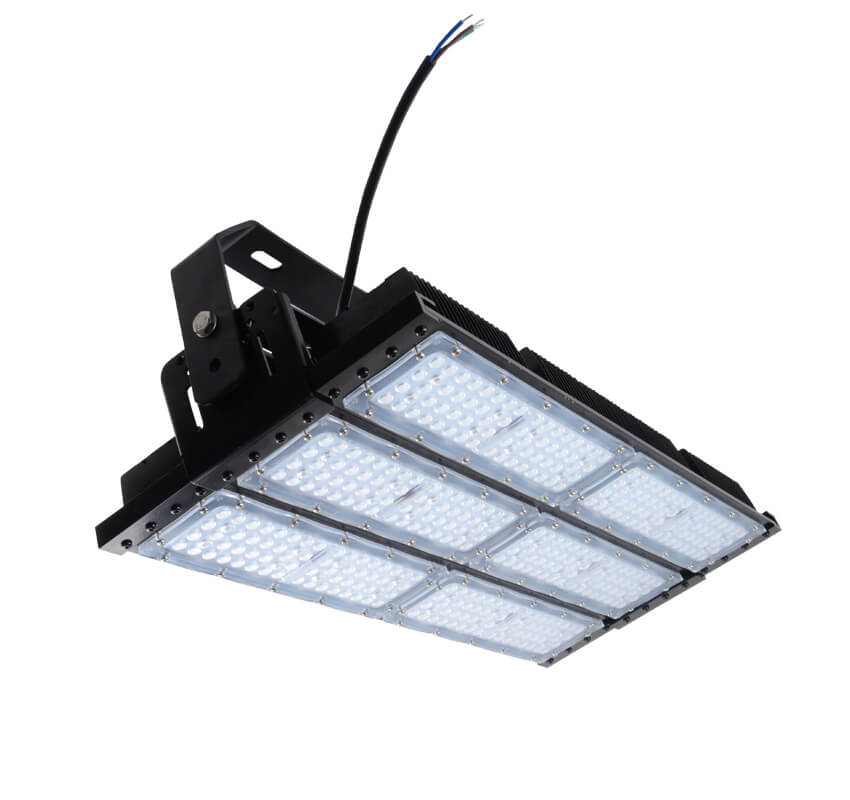

Name: 240 Watt LED Flood low bay Lights
Luminous: 32000 Lumen
Beam Angle: 45° / 90° / 120°/ 160°
CCT: 3000K/4000-4500K/5000K/5700K/6500K
IP Rating: IP66
Driver: MeanWell Driver
Dimmable: Non-dimmable/dimmable
Body Temperature: <55℃ @Ta=25 ℃
Lifetime: 50,000+hours
Warranty: 5 years
Certification: ETL TUV SAA C-tick LCP RoHS
 LED Low Bay Light                                            240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

Product Description

  • 3030 SMD LEDS with high efficacy up to 133 Lm/W.
  • With most suitable beam angle 45, 90  and 120 degrees.
  • Integrated dimming by PWM, Resistance or 0-10V standard.
  • Unique appearance with innovative modular fin heatsink design.
  • Resistant to impact and seismic activities.
  • Instant on and off without delay or re-strike.
  • Industrial die cast anodized aluminum fixture housing.
  • Excellent resistance to corrosion, UV degredation and abrasion.
  • Short circuit, over current, over voltage, over temp protection.
  • IP65 rated for indoor or outdoor applications
  • 6 year system warranty
  • Certifications ETL TUV SAA C-tick LCP RoHS listed
  • Single and Double Hang Ring Pendant Mount and Plate Mount for easy installation

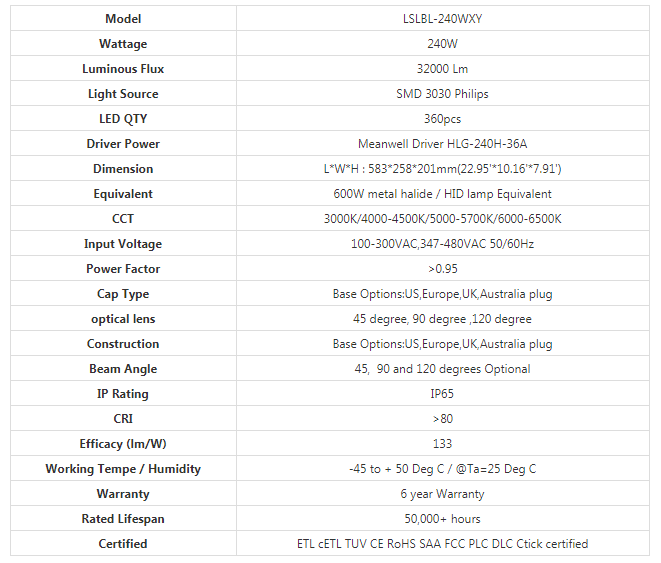

    Specifications

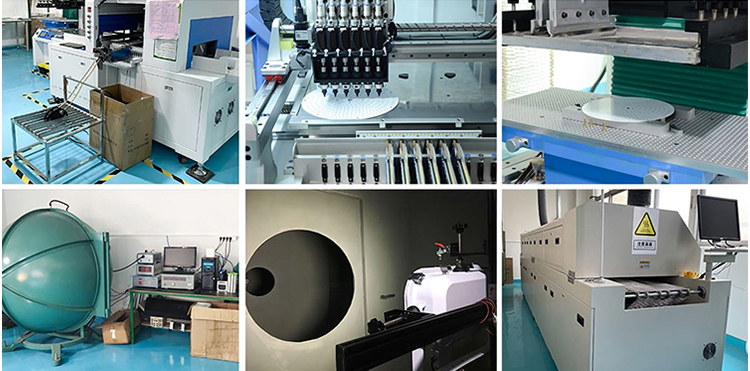

Aging Test                                                            240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

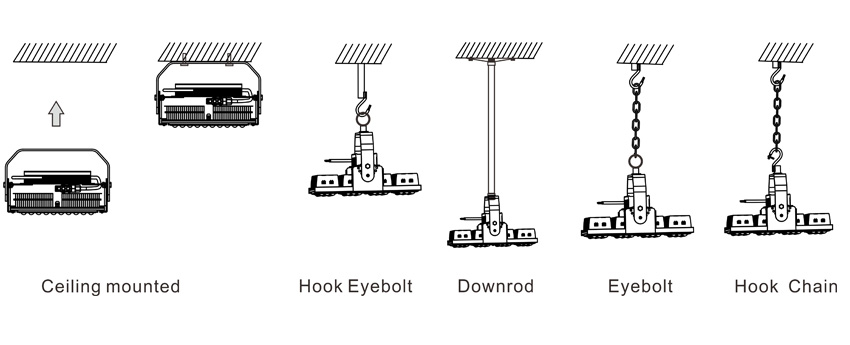

Installation

240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

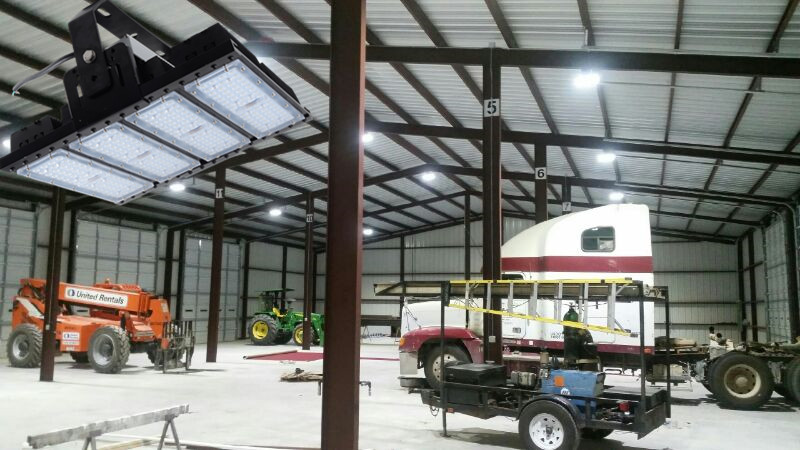

Feedback

240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light



What Should Be Awared Of

1. Read the user’s manual in details, make sure the environment conditions fit the requests.
2. Cut the power off before installation.
3. Do not install this LED light in ambient where has high temperature over like 55 celsius degree or over corrosive gas.
4. Indoor,Outdoor use in outdoor luminaires.
5. Don’t throw away casually.

Company Information

Lamp Shining Manufacturing Co.,Ltd was founded in 2010 who has been specializing in developing and manufacturing LED lamps, we have won high reputation from oversea clients. Lamp Shining factory has been dealing led business with over 130 countries. We locates at Shenzhen city Guangdong province where is next to Hong Kong island, so it’s easier for a factory visiting.

240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light

240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light



240 Watt LED Flood Parking Area Lights used outdoors in stadiums sports fields Low bay light
