Description
Quick Details
- Color Temperature(CCT): 3000K-5700K,CCT Changing
- Input Voltage(V): 100-277V 120-347V 277V-480V
- Warranty(Year): 5-Year
- Color Rendering Index(Ra): 80
- Support Dimmer: Yes
- Color: White
- Lighting solutions service: Lighting and circuitry design, DIALux evo layout, Project Installation
- Lifespan (hours): 50000
- Working Time (hours): 50000
- Type: LED Linear Light
- Light Source: LED
- LED Chip: 2835 SMD Epistar
- Wattage: 38w 60w 80w 120W
- Cover: transparent, milk
- dimension: 48.26″*4.29″*2.75″
- Emergency: 15W/20W 90Mins
- Sensor: Motion Sensor+Daylight Harvesting
- The options of connection: 3 wire plugs or 5 wire plugs with 0-10V dimmable
- Max Linkable Watts: 400w/600w
- installation: Surface Mounting/Surface Mounting/Flush Mounting
- Application 1: Airport/Warehouse/Industrial Areas
- Certification: CE RoHS ETL DLC
-
Applications

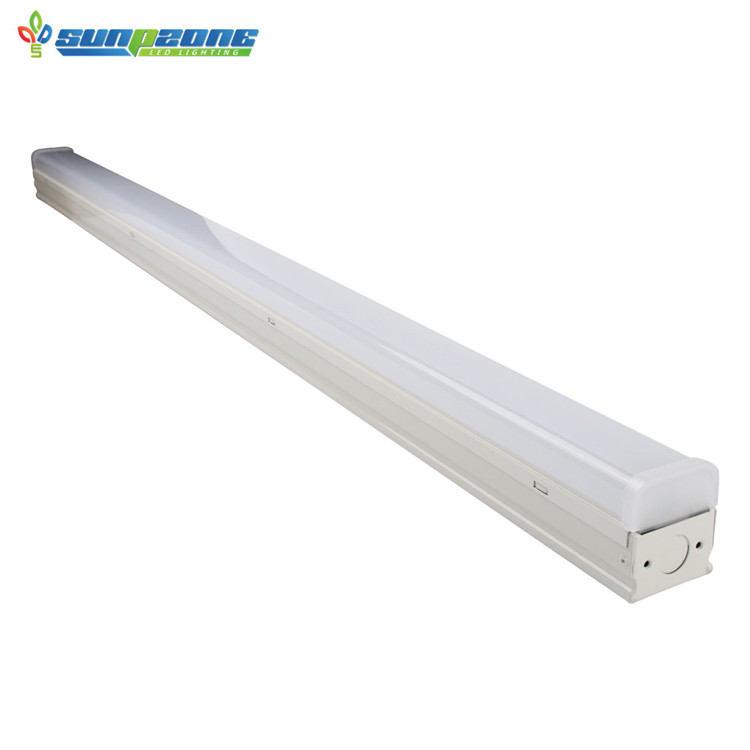

High Lumen Emergency Sensor Batten 4ft 1.2m 60W Dimmable Linkable Pendant LED Linear Light

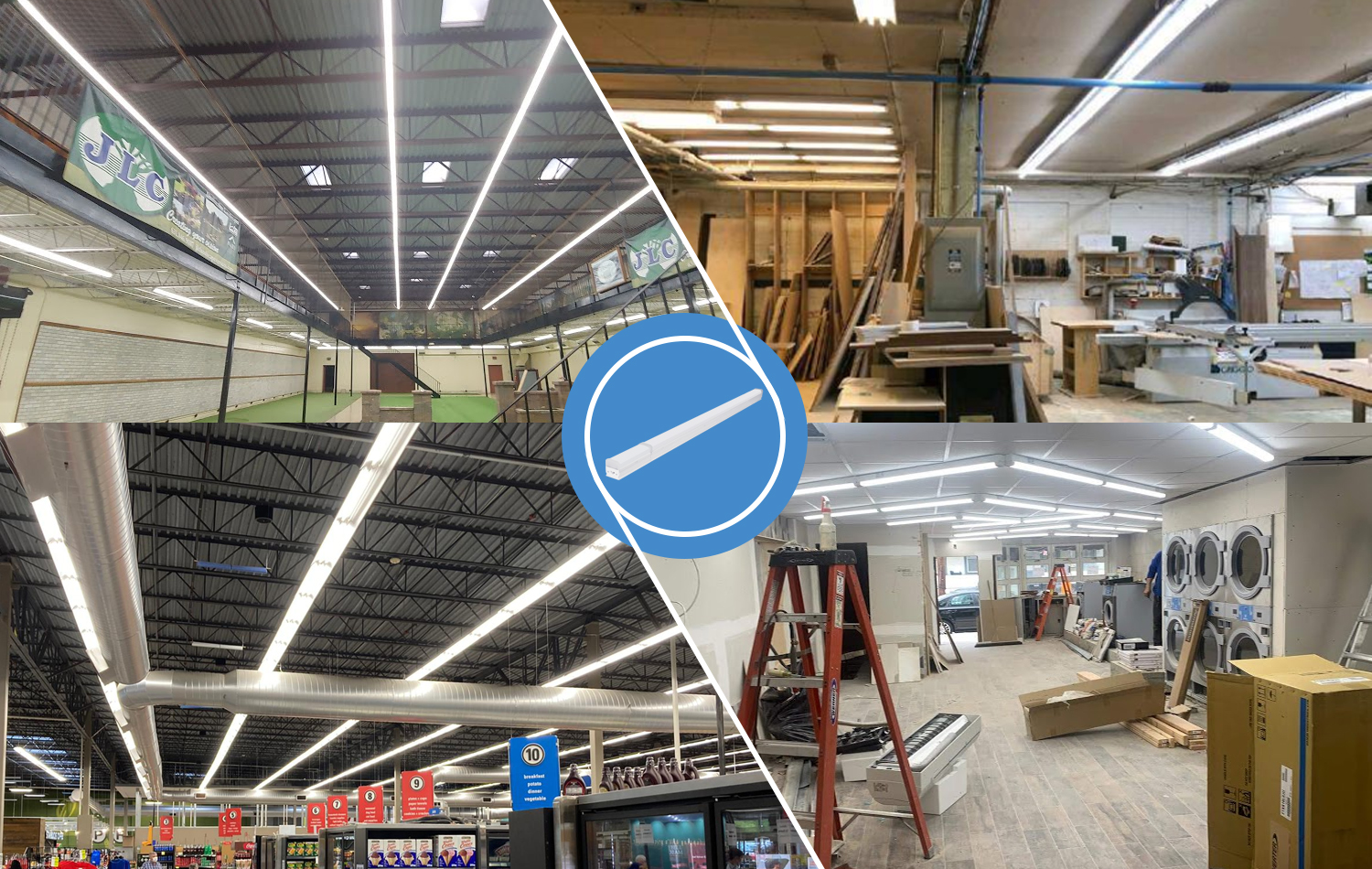

SupermarketShopping mallShowroomsConference roomsCommercial lighting Work shops
Industrial lightingDistribution & warehouse Retail & officeEducation & health Data centers
Specification❤Welcome to Sunpzone Manufacture Direct Sale❤OEM/ODM Expert

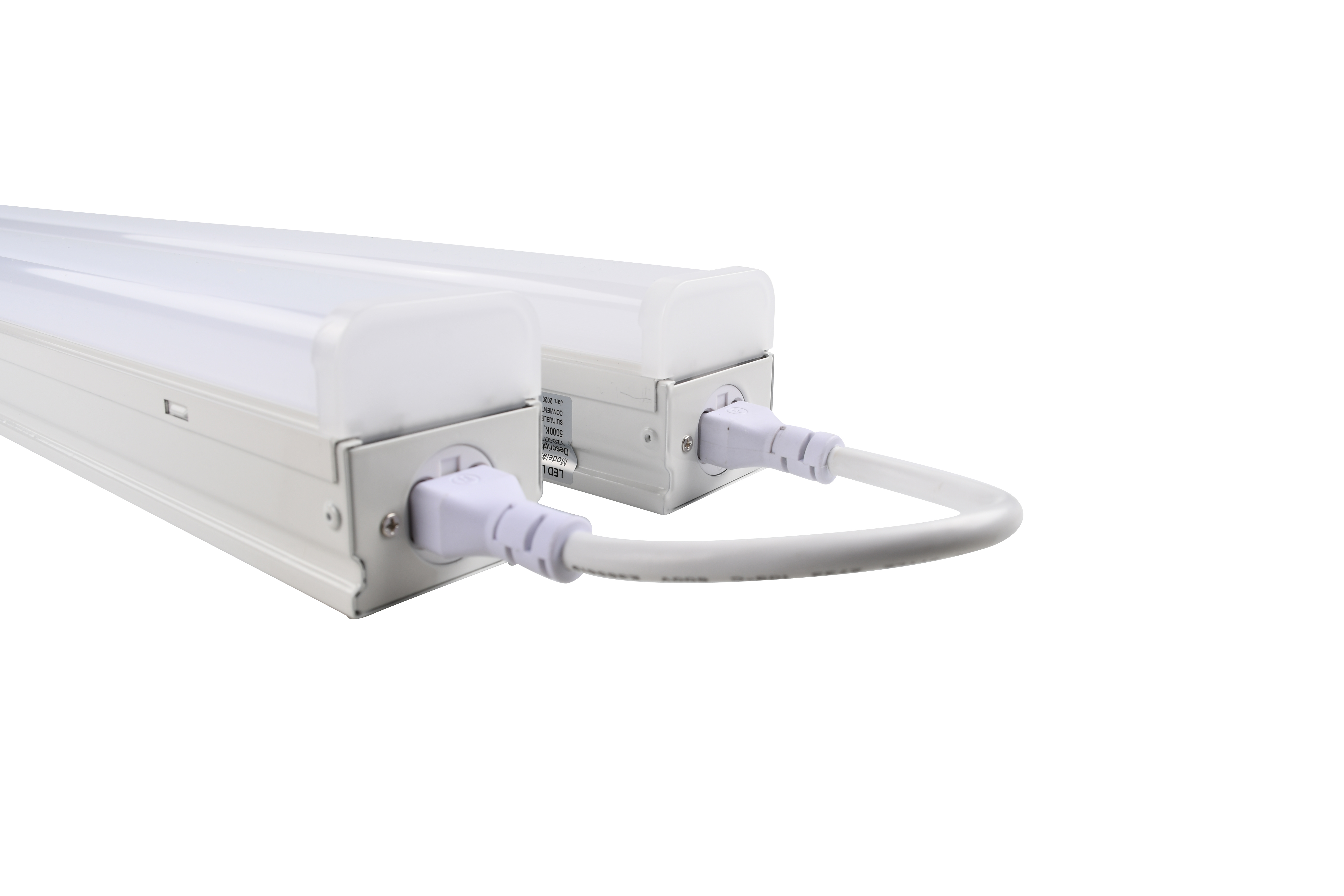

The Newest 600W Linkable Advantages:1. Using male and female connectors for power input chords and linkable chords, its easy for customers to save labor cost using steeless steel bracket for surface mount instead of opening fixture and fixing with screws into cellings
2. Using small plastic to cover the male connectors and female connectors for safty.3. Using small male-female connectors or chords with male-female connectors for linkable. Max linkable watt can be 400w /600w4. Can be installed with MC cable.5. Still keeping original advantages: Easily open fixtures for maintenance, only takes few seconds to open the fixtures to change driver or leds.6. Can be connected with three holes cord and five holes cord that it can be 0-10 dimming available in series.
ModelWattTypical LumenCCTDimension(inch)SPZ2T5F426P26W3600lm4000K;5000K;5700K48.26”*2.36”*2.75”SPZ2T8F438P38W5300lm48.26”*2.36”*2.75”SPZ2T5F860P60W8500lm94.48”*2.36”*2.75”SPZ2T5F880P80W11000lm94.48”*2.36”*2.75”SPZ2T8F860P60W8400lm94.48″*4.29″*2.75″SPZ2T8F880P80W11000lm94.48″*4.29″*2.75″SPZ2T8F8120P120W16800lm94.48″*4.29″*2.75″Products Description
Setting InformationWattage38WRated voltage100-277V; 347-480VLife time50,000hoursLumens5400 lumensLnstallationSurface Mounted / Suspendedlight colorwarm white / commercial white / cool whiteSize4ftOptionalDimmable and Motion SensorProduct Details
LED Linear lights is a new generation of eco-friendly lights offering maximum light output, exceptional illumination and energy savings.Our LED Linear Lights are listed/certified with ETL and Premium DLC, and can be mounted on a surface or suspended.
Easy installation saves time and labor cost and it can provide virtually maintenance-free service.
0 – 10V standard dimming capabilities are available and this makes our LED LINEAR perfect for applications such as office, classroom, healthcare facility, retail space, parking structure and more.Feature• Lumen packages range from 3,600 to 16,800 lumens • 140+ LPW standard or 200+ LPW for High Efficacy option • -20°C (-4°F) up to 50°C (122°F) ambient operation • Damp location usage • 0-10V dimmable is available • Max linkable watt of 600W • Friendly and easily linkable connection between every two units
• Sensor can be preinstalled in factory

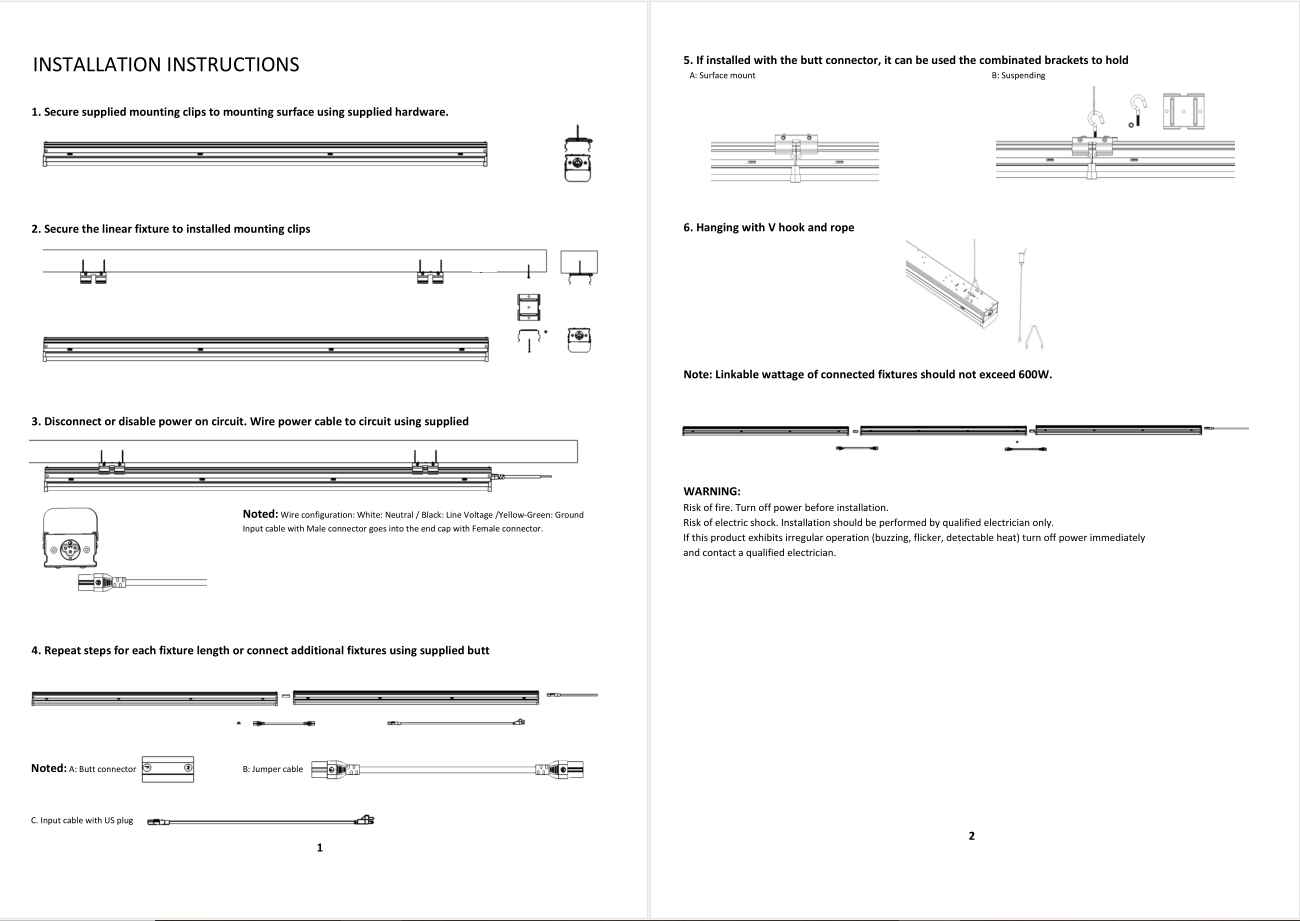

• 4kV surge protection standard, with 6kV option• UL 924 with emergency battery pack, 2000 lumens (15watt)• Two cover options, milky and stripped clear• Long-life 60,000 hour LEDs at L80 with projected life over 200,000 hours at L70• Five years warrantyInstallation Process
