Commercial Linear Low Bay Fixtures Led Warehouse Led High Bay Lighting Low Bay Light for USA Market

Commercial Linear Low Bay Fixtures Led Warehouse Led High Bay Lighting Low Bay Light for USA Market

Color Temperature(CCT): 5000K (Daylight)
Input Voltage(V): AC100-277V&AC100-347V
Lamp Luminous Efficiency(lm/w): 160
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Categories: , ,

Description

Quick Details
Color Temperature(CCT): 5000K (Daylight)
Input Voltage(V): AC100-277V&AC100-347V
Lamp Luminous Efficiency(lm/w): 160
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Type: SPZLLB12F65P
Light Source: LED
CCT: 4000K/5000K/5700K
Dimmable: 0-10V Dimmable
Dimensions: 1ft*2ft
Cover: Milky Cover/Clear Cover/Prism Lens
Main Materials: Aluminum + Acrylic Lens
Usage: Replacement HID,T8 or T5 fluorescent of 15′ to 45′ ceilings
Installation: Hanging/Surface/Adjustable
IP Grade: IP44
Sensor: Micro-Wave sensor for option
LED Light Source: SMD 2835
Luminous Efficacy(lm/w): 160
Certification: ETL
Specification
• Intelligent Lighting:zigbee wireless control, daylight sensor dimming,microwave sensor dimming, three in one(0 – 10v,PWM,
Resistance) dimming available.

• Wireless connectivity with software for easy reporting and fine tuning of lighting settings anytime, anywhere.

• Software-defined coordinated control and progressive dimming to maximize occupant comfort and energy savings

• Integrated occupancy sensing, daylight sensing, and power metering for maximum efficiency
• Big rebates save more through utility rebates. All models are DLC Premium listed

• Stays cool. 24/7 operation at high ambient temperatures (up to 55°C).

Model
Watt

(W)
Input Voltage
Lumen

(Lm)
DLC

Primary Use
IP Rate
       Size

      (Inch)
SPZLLB12F65P
65
100-277V

100-347V
10400
Low-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F80P
80
100-277V

100-347V
12800
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F100P
100
100-277V

100-347V
16000
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB14F130
130
100-277V

100-347V
18200
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB14F165P
165
100-277V

100-347V
26400
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB22F200P
200
100-277V

100-347V
32000
High-Bay Luminaires
IP40
23.74*23.74*2.95
SPZLHB24F240P
240
100-277V

100-347V
38400
High-Bay Luminaires
IP40
45.67*23.74*2.95
SPZLHB24F320P
320
100-277V

100-347V
51200
High-Bay Luminaires
IP40
45.67*23.74*2.95

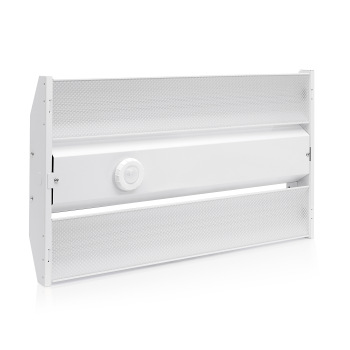

Product Description

Commercial Linear Low Bay Fixtures Led Warehouse Led High Bay Lighting Low Bay Light for USA Market

   Feature:
• 65W-320W in available.

• Long lifespan 50000hours.
• Uniform lighting effect.
• Quick starting.
• No stroboscopic effect; no glare.
• High heat-sink efficiency: use thermal column to help heat sink.
• No mercury or lead; environmental protecting.
• Save 60% energy than conventional light.
• DLC ETL CE and RoHS certified





Gain versatility without sacrificing continuity

• Its modular design provides the flexibility of different outputs and multiple distributions, all from the same basic luminaire construction, allowing you to choose just the right solution for each space within your application, while maintaining fixture continuity.



Choose your optical distribut ion

• Each optic is designed for a specific purpose. The general distribution allows a wash of light in any application.

• The aisle beam has an asymmetric distribution for aisle or rack areas.

• The narrow beam allows focused light in higher ceiling areas.

• The medium beam is tailored for mid mounting heights.

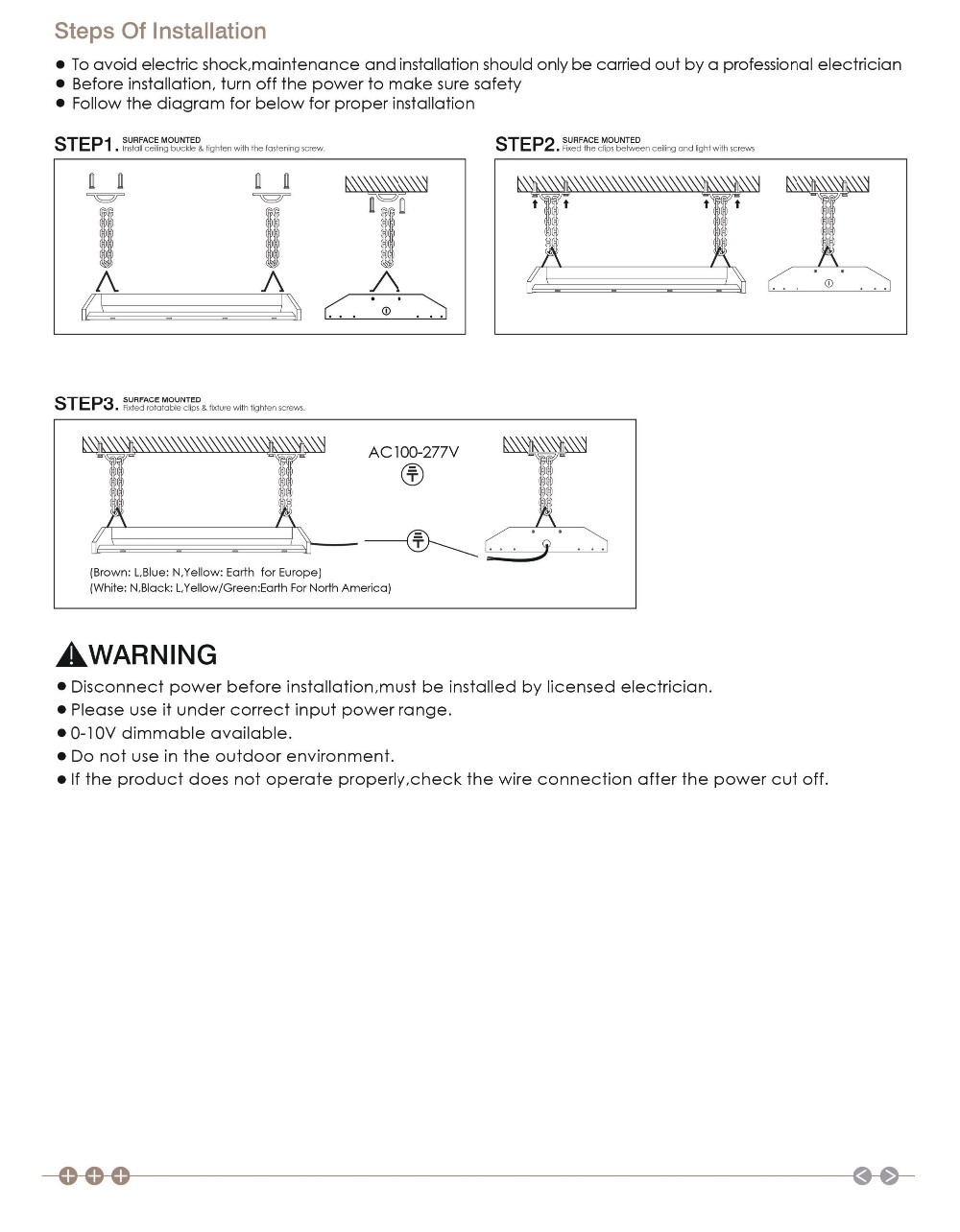

Installation Process

Commercial Linear Low Bay Fixtures Led Warehouse Led High Bay Lighting Low Bay Light for USA Market

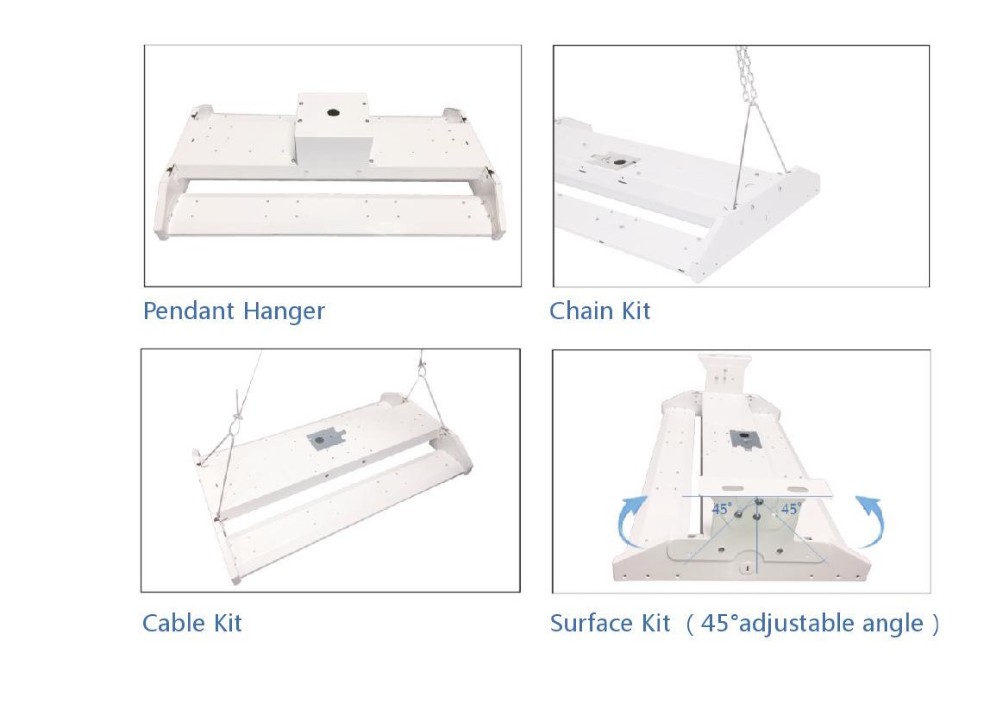

 Mounting Options

• Installation Type: Standard Suspending Kits / Surface mounted

 • Dimming : 0-10v Dimmable / External Motion Sensor

 • Cover Options: Without cover / Clear PC cover / Prism Cover

Model
Carton Size

(Inch)
Qty/Carton

(PCS)
G.W./Carton(LB)
SPZLLB12F65P
25.5*16.9*8.3
2
22.92
SPZLHB12F80P
25.5*16.9*8.3
2
22.92
SPZLHB12F100P
25.5*16.9*8.3
2
22.92
SPZLHB14F130
47.6*16.9*8.3
2
37.47
SPZLHB14F165P
47.6*16.9*8.3
2
37.47
SPZLHB22F200P
25.5*25.1*8.3
2
34.28
SPZLHB24F240P
47.6*25.1*8.3
2
56.88
SPZLHB24F320P
47.6*25.1*8.3
2
56.88

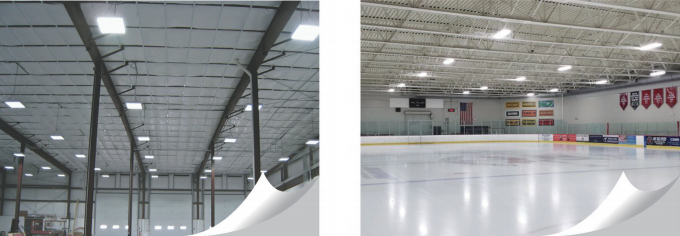

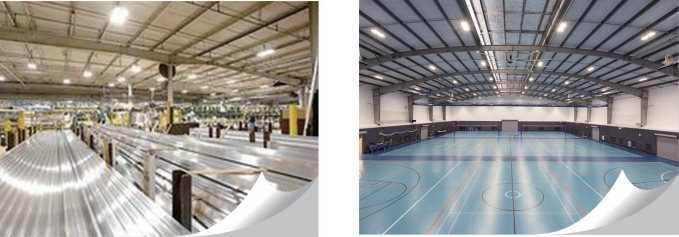

Applications

Commercial Linear Low Bay Fixtures Led Warehouse Led High Bay Lighting Low Bay Light for USA Market

• Warehousing

• Gymnasiums

• Light industrial spaces

• Office

• Classroom

• Retail space

• Parking structure

• other large indoor spaces with mounting heights ranging from 15′ – 40′.

Packaging & Shipping
