Description
Quick Details
- Color Temperature(CCT): 4000K (Daylight)
- Input Voltage(V): 120-240VAC
- Lamp Luminous Efficiency(lm/w): 150
- Warranty(Year): 5-Year
- Color Rendering Index(Ra): 90
- Support Dimmer: Yes
- Color: White
- Lighting solutions service: Lighting and circuitry design, LitePro DLX layout, Agi32 layout, Onsite metering
- Lifespan (hours): 100000
- Working Time (hours): 100000
- Type: led low bay light
- Light Source: LED
- Product Name: 6500K commercial lighting Aluminum body 120w 60w led low bay light
- Keyword: led lowbay light
- Material: Alumimum
- Lumen: 9000/18000 lm
- Voltage: 120-240VAC
- Waterproof: IP66
- Watt: 60W 120W
- length: 1140mm
- Beam angel: 130°
- Certification: CE/ROHS
Description

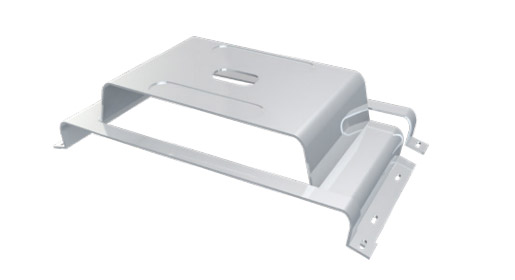

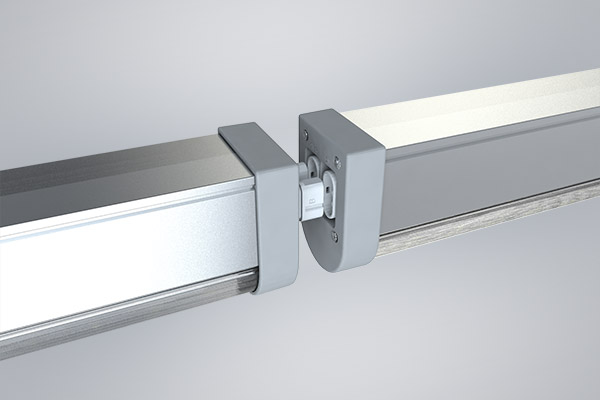

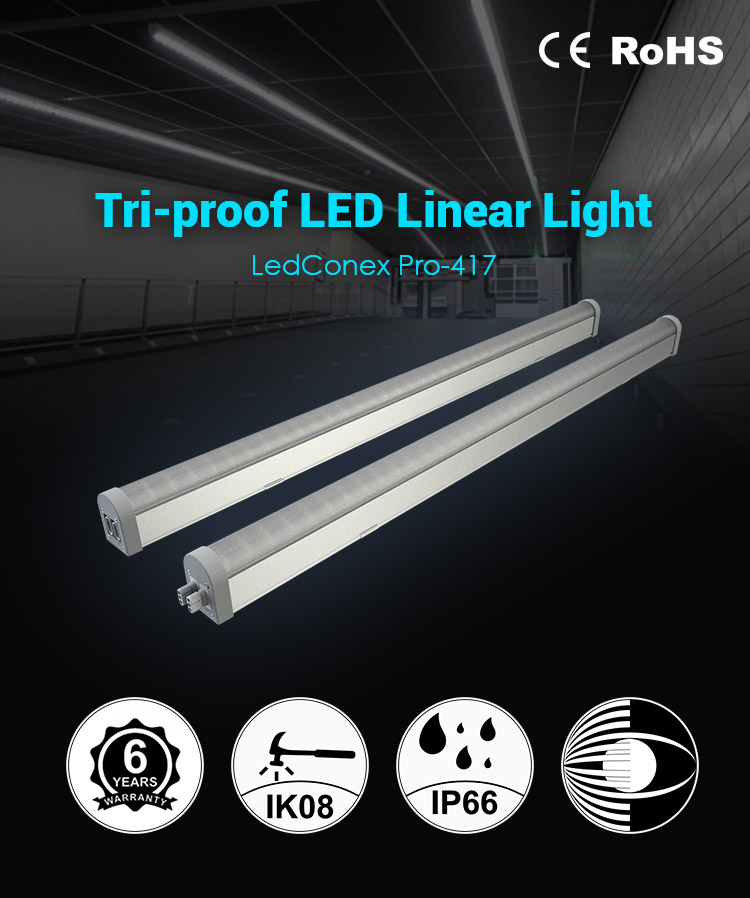

1.The new generation of LedConex Pro LED Lowbay / Highbay lights. High performance and strobe free. 2.While creating a comfortable environment, Lite Bus series LED lights can also significantly reduce energy consumption. 3.Integrated interconnecting design minimize the occupied space. 4.The sliding installation kit improves the efficiency of installation and maintenance and reduces labor costs. At the same time, the aesthetics of the architecture space is improved.

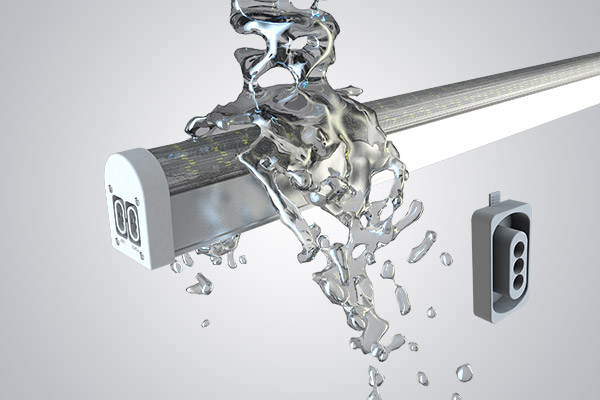

High protection level IP66 and IK08.

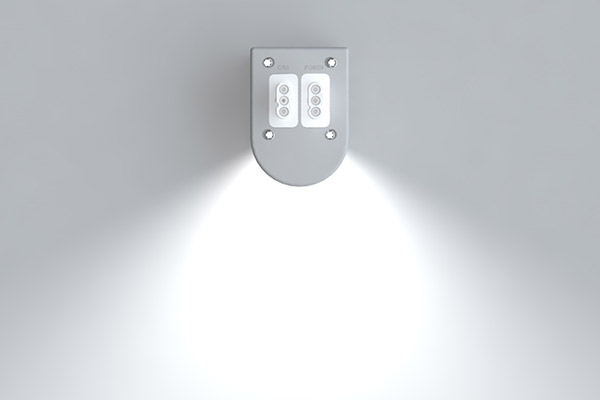

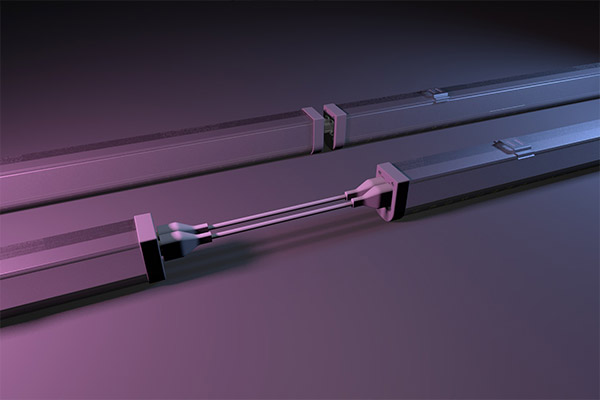

Plug and Play
High performance and flicker free

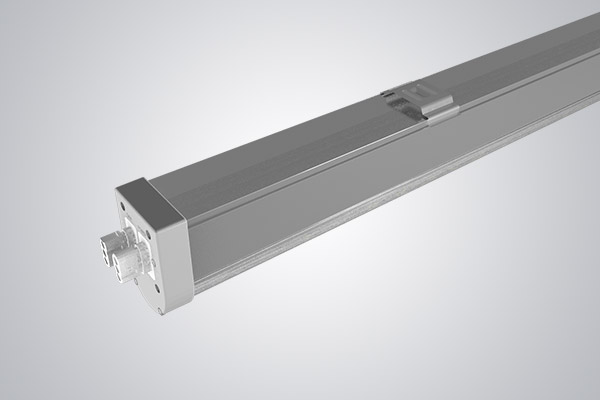

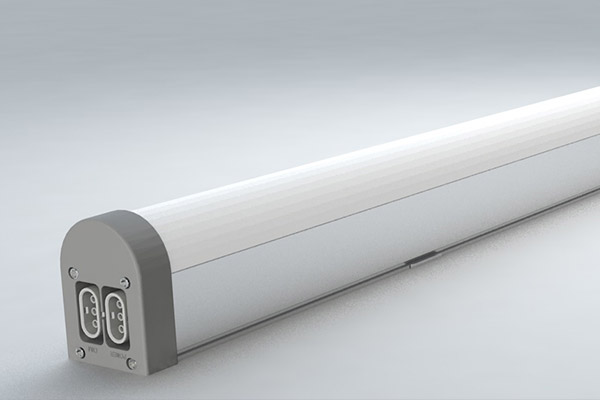

Aviation grade aluminum. Flame retardant PC cover
High quality LED, lifespan >100,000hrs L70B20
Special optics design for high efficiency up to 150lm/w.
Parameters
|
Model No.
|
417-0001
|
417-0002
|
|

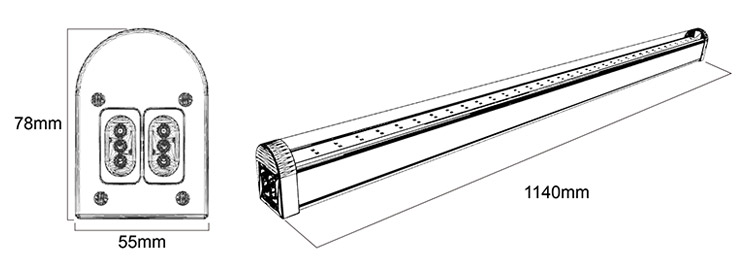

Length
|
1140mm
|
1140mm
|
|
Beam Angle
|
130°
|
130°
|
|
Power
|
60W
|
120W
|
|
Efficiency
|
150lm/W
|
150lm/W
|
|
Voltage
|
120-240VAC
|
120-240VAC
|
|
Total Lumen
|
9000lm
|
18000lm
|
|
LED
|
Samsung2835
|
Samsung2835
|
|
Dimming
|
0-10V
|
0-10V
|
|
CCT(K)
|
4000
|
4000
|
|
Max Connection QTY
|
||
|
VOLTAGE(AC)
|
417-0001
|
417-0002
|
|
120V
|
/
|
/
|
|
208V
|
/
|
/
|
|
230V
|
30
|
15
|
|
277V
|
/
|
/
|
|
348V
|
/
|
/
|
|
480V
|
/
|
/
|
Product Accessories

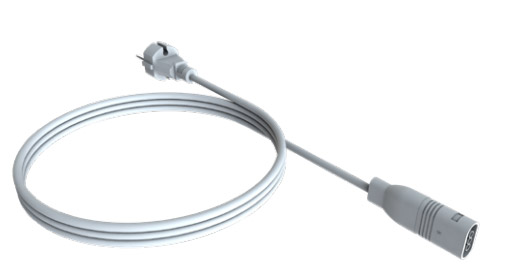

Power cable 3*1.5mm² (2m)
(Europe standard)
417-A-0001

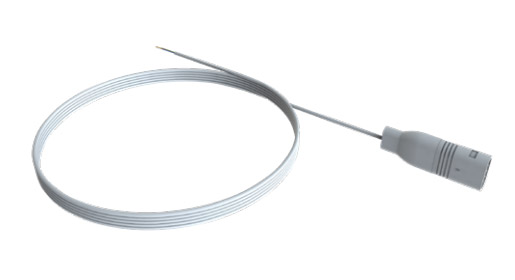

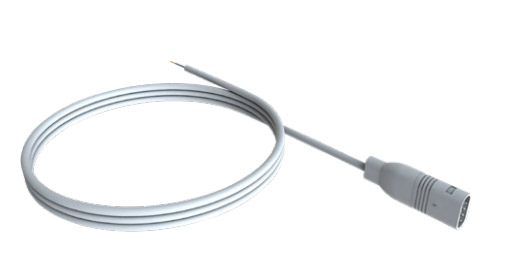

Pigtail power cable 3*1.5mm² (2m)
(Europe standard)
417-A-0002

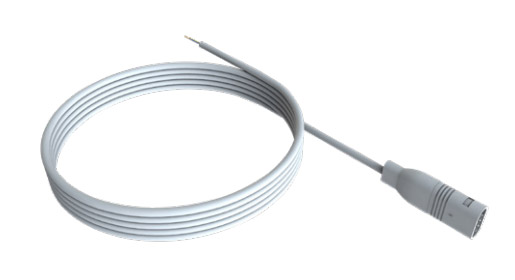

Pigtail power cable 3*1.5mm² (5m)
417-A-0004

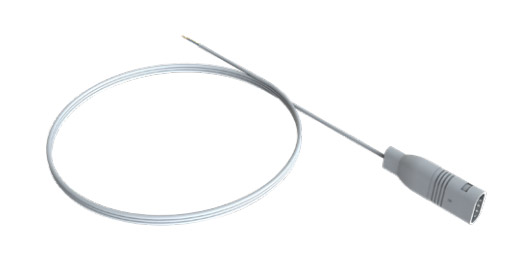

Pigtail dimming cable
2*0.75mm² (2m)
417-A-0005
Pigtail dimming cable
2*0.75mm²(5m)
417-A-0006
Pigtail power cable 3*1.5mm² (5m)
417-A-0004
Dimming interconnection cable
2*0.75mm² (2m)
417-A-0008

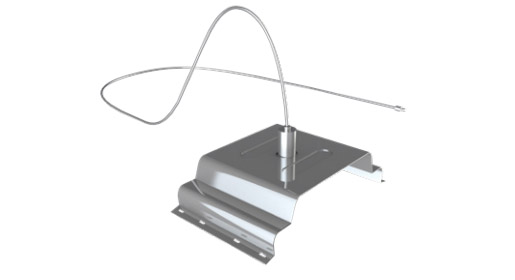

Sliding stainless steel clips
(1 pair)
417-A-0009

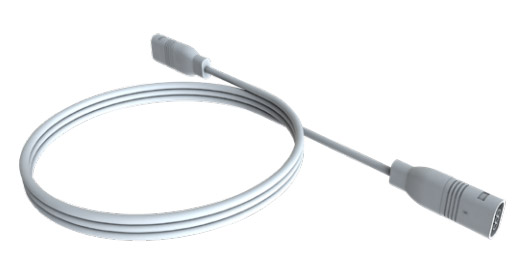

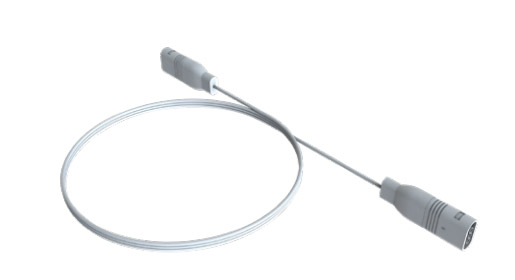

Power interconnection cable
3*1.5mm² (2m)
417-A-0007

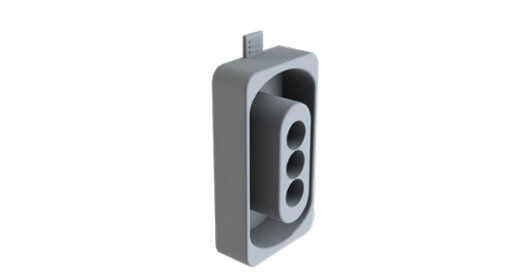

Female plug end cap
417-A-0011
Male plug end cap
417-A-0012
Interconnection clip
417-A-0014

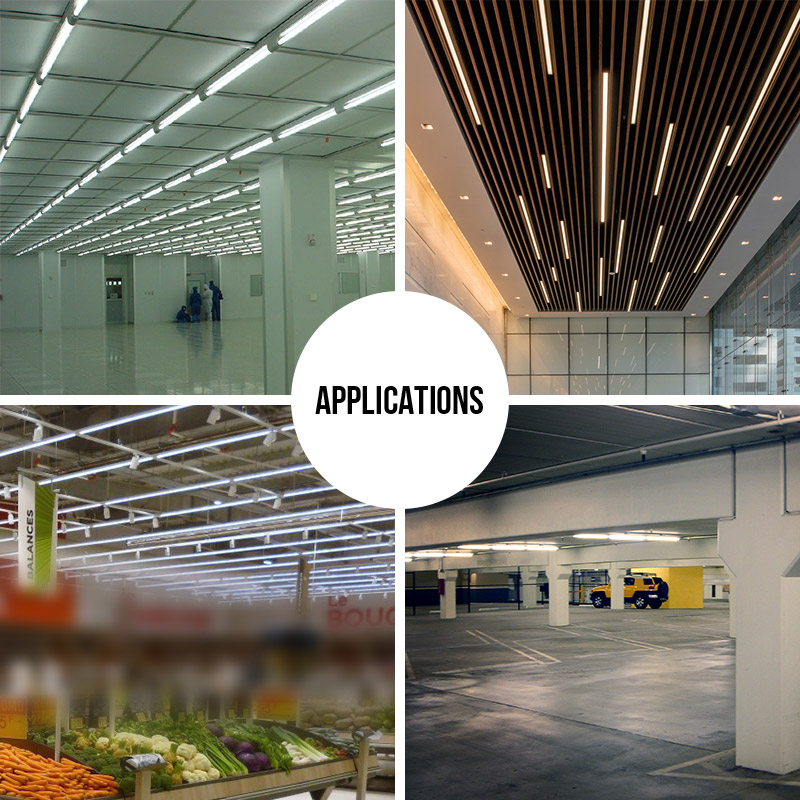

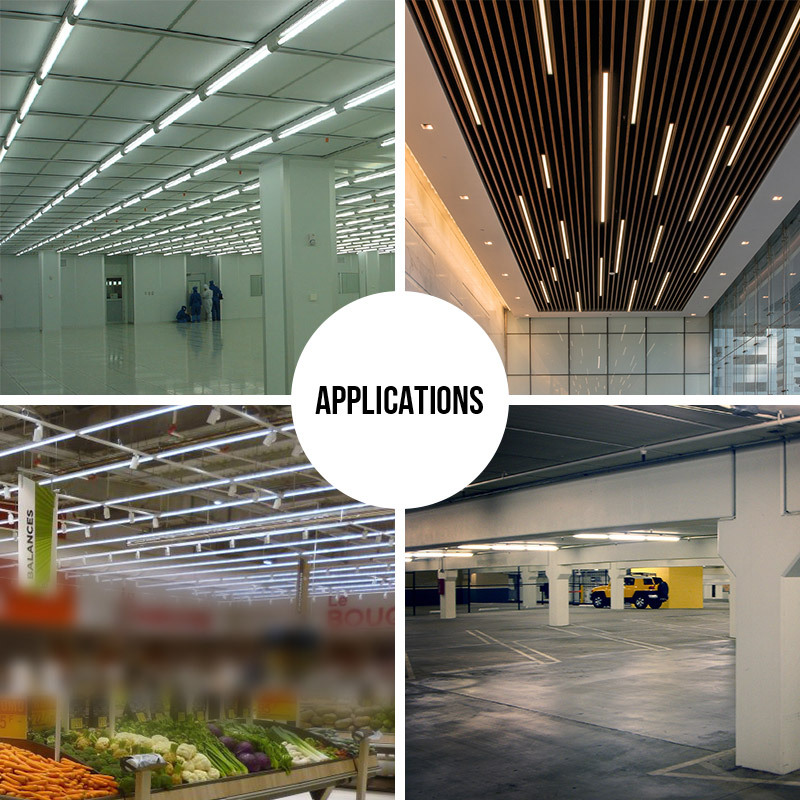

Application Scenarios
Application
With it’s outstand performance, ledconex pro can be applied to a variety of scenarios such as sophisticated workshops, high end offices, warehouses, indoor stadiums, hospital corridor, factory, shopping mall, store, parking lot, garage, swimming pool, railway station, tunnel, hotel, lobby and supermarket etc.
Production Process
