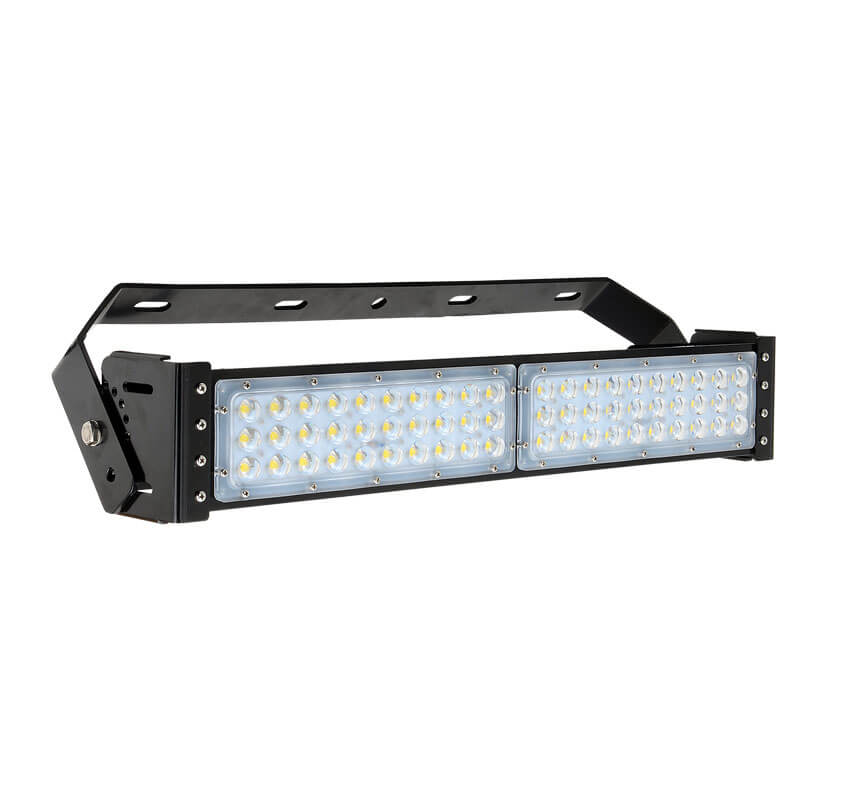

High Quality Aluminum Ip66 China led flood light single model 100watt Low bay light

High Quality Aluminum Ip66 China led flood light single model 100watt Low bay light

Color Temperature(CCT): 3000-6000k
Input Voltage(V): AC 110V ( ± 10%)
Lamp Luminous Efficiency(lm/w): 130
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, DIALux evo layout
Lifespan (hours): 50000
Working Time (hours): 50000

Description

Quick Details
Color Temperature(CCT): 3000-6000k
Input Voltage(V): AC 110V ( ± 10%)
Lamp Luminous Efficiency(lm/w): 130
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Lighting solutions service: Lighting and circuitry design, DIALux evo layout
Lifespan (hours): 50000
Working Time (hours): 50000
Type: LED High Bay Low Bay Lighting
Light Source: LED
Name: 100W Led High Bay Low Bay Lights
Luminous: 12500 Lumen
IP Rating: IP66
Beam Angle: 45° / 90° / 120°/ 160°
Driver: MeanWell Driver
Dimmable: Non-dimmable/dimmable
CCT: 3000K/4000-4500K/5000K/5700K/6500K
Warranty: 6 years
Lifetime: 50,000+hours
Body Temperature: <55℃ @Ta=25 ℃
Certification: ETL DLC TUV SAA C-tick LCP RoHS
 LED Low Bay Light                                            High Quality Aluminum Ip66 China led flood light single model 100watt Low bay lightProduct Description

  • 3030 SMD LEDS with high efficacy up to 133 Lm/W.
  • With most suitable beam angle 45, 90 and 120 degrees.
  • Integrated dimming by PWM, Resistance or 0-10V standard.
  • Unique appearance with innovative modular fin heatsink design.
  • Resistant to impact and seismic activities.
  • Instant on and off without delay or re-strike.
  • Industrial die cast anodized aluminum fixture housing.
  • Excellent resistance to corrosion, UV degredation and abrasion.
  • Short circuit, over current, over voltage, over temp protection.
  • IP65 rated for indoor or outdoor applications
  • 6 year system warranty
  • Certifications ETL TUV SAA C-tick LCP RoHS listed
  • Single and Double Hang Ring Pendant Mount and Plate Mount for easy installation



Outer DimensionHigh Quality Aluminum Ip66 China led flood light single model 100watt Low bay light

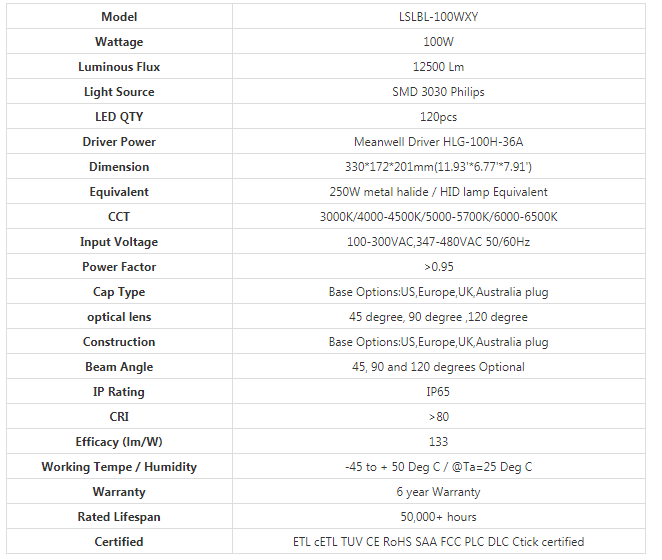

Specifications

Applications

  • Warehouse LED Lighting
  • Tunnel LED Lighting
  • High Mast Lighting
  • High-Bay Lighting
  • Factory Lighting
  • Low Bay Lighting



Aging Test                                                            High Quality Aluminum Ip66 China led flood light single model 100watt Low bay light



Installation

High Quality Aluminum Ip66 China led flood light single model 100watt Low bay light
