LED Suspended Linear Low Bay Light

LED Suspended Linear Low Bay Light

Color Temperature(CCT): 5000K (Daylight)
Input Voltage(V): 100-277Vac
Lamp Luminous Efficiency(lm/w): 150, 150
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Color: White
Lighting solutions service: Lighting and circuitry design, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000

Description

Quick Details
Color Temperature(CCT): 5000K (Daylight)
Input Voltage(V): 100-277Vac
Lamp Luminous Efficiency(lm/w): 150, 150
Warranty(Year): 5-Year
Color Rendering Index(Ra): 80
Support Dimmer: Yes
Color: White
Lighting solutions service: Lighting and circuitry design, Project Installation
Lifespan (hours): 50000
Working Time (hours): 50000
Type: led low bay light
Light Source: LED
Power: 65
CCT: 5000K
Dimmable: 0-10V
Main Materials: Main Materials
Installation: Hanging/Surface/Adjustable
Warranty(Years): 5
Luminous Efficacy(lm/w): 150
Certification: DLC ETL CE ROHS
Specification

                         Welcome to SunPZone Led Lighting

LED Suspended Linear Low Bay Light

• Intelligent Lighting:zigbee wireless control, daylight sensor dimming,microwave sensor dimming, three in            one(0 – 10v,PWM, Resistance) dimming available.

• Wireless connectivity with software for easy reporting and fine tuning of lighting settings anytime, anywhere.

• Software-defined coordinated control and progressive dimming to maximize occupant comfort and energy          savings

• Integrated occupancy sensing, daylight sensing, and power metering for maximum efficiency
• Big rebates save more through utility rebates. All models are DLC Premium listed

• Stays cool. 24/7 operation at high ambient temperatures (up to 55°C).

Feature:

• 65W-320W in available.
• Long lifespan 50000hours.
• Uniform lighting effect.
• Quick starting.
• No stroboscopic effect; no glare.

• High heat-sink efficiency: use thermal column to help heat sink.
• No mercury or lead; environmental protecting.
• Save 60% energy than conventional light.
• DLC ETL CE and RoHS certified

Model
Watt

(W)
Input Voltage
Lumen

(Lm)
DLC

Primary Use
IP Rate
       Size

      (Inch)
SPZLLB12F65P
65
100-277V

100-347V
9100
Low-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F80P
80
100-277V

100-347V
11200
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB12F100P
100
100-277V

100-347V
14000
High-Bay Luminaires
IP40
23.74*14.17*2.95
SPZLHB14F130
130
100-277V

100-347V
18200
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB14F165P
165
100-277V

100-347V
23100
High-Bay Luminaires
IP40
45.67*14.17*2.95
SPZLHB22F200P
200
100-277V

100-347V
28000
High-Bay Luminaires
IP40
23.74*23.74*2.95
SPZLHB24F240P
240
100-277V

100-347V
33600
High-Bay Luminaires
IP40
45.67*23.74*2.95
SPZLHB24F320P
320
100-277V

100-347V
44800
High-Bay Luminaires
IP40
45.67*23.74*2.95
Product Description

LED Suspended Linear Low Bay Light

Gain versatility without sacrificing continuity

• Its modular design provides the flexibility of different outputs and multiple distributions, all from the same basic luminaire construction, allowing you to choose just the right solution for each space within your application, while maintaining fixture continuity.

Choose your optical distribut ion

• Each optic is designed for a specific purpose. The      general distribution allows a wash of light in any          application.

• The aisle beam has an asymmetric distribution for      aisle or rack areas.

• The narrow beam allows focused light in higher          ceiling areas.

• The medium beam is tailored for mid mounting           heights.

Installation Process

LED Suspended Linear Low Bay Light

Mounting Options

• Installation Type: Standard Suspending Kits /              Surface mounted
 • Dimming : 0-10v Dimmable / External Motion Sensor
 • Cover Options: Without cover / Clear PC cover /           Prism Cover

Model
Carton Size

(Inch)
Qty/Carton

(PCS)
G.W./Carton(LB)
SPZLLB12F65P
25.5*16.9*8.3
2
22.92
SPZLHB12F80P
25.5*16.9*8.3
2
22.92
SPZLHB12F100P
25.5*16.9*8.3
2
22.92
SPZLHB14F130
47.6*16.9*8.3
2
37.47
SPZLHB14F165P
47.6*16.9*8.3
2
37.47
SPZLHB22F200P
25.5*25.1*8.3
2
34.28
SPZLHB24F240P
47.6*25.1*8.3
2
56.88
SPZLHB24F320P
47.6*25.1*8.3
2
56.88

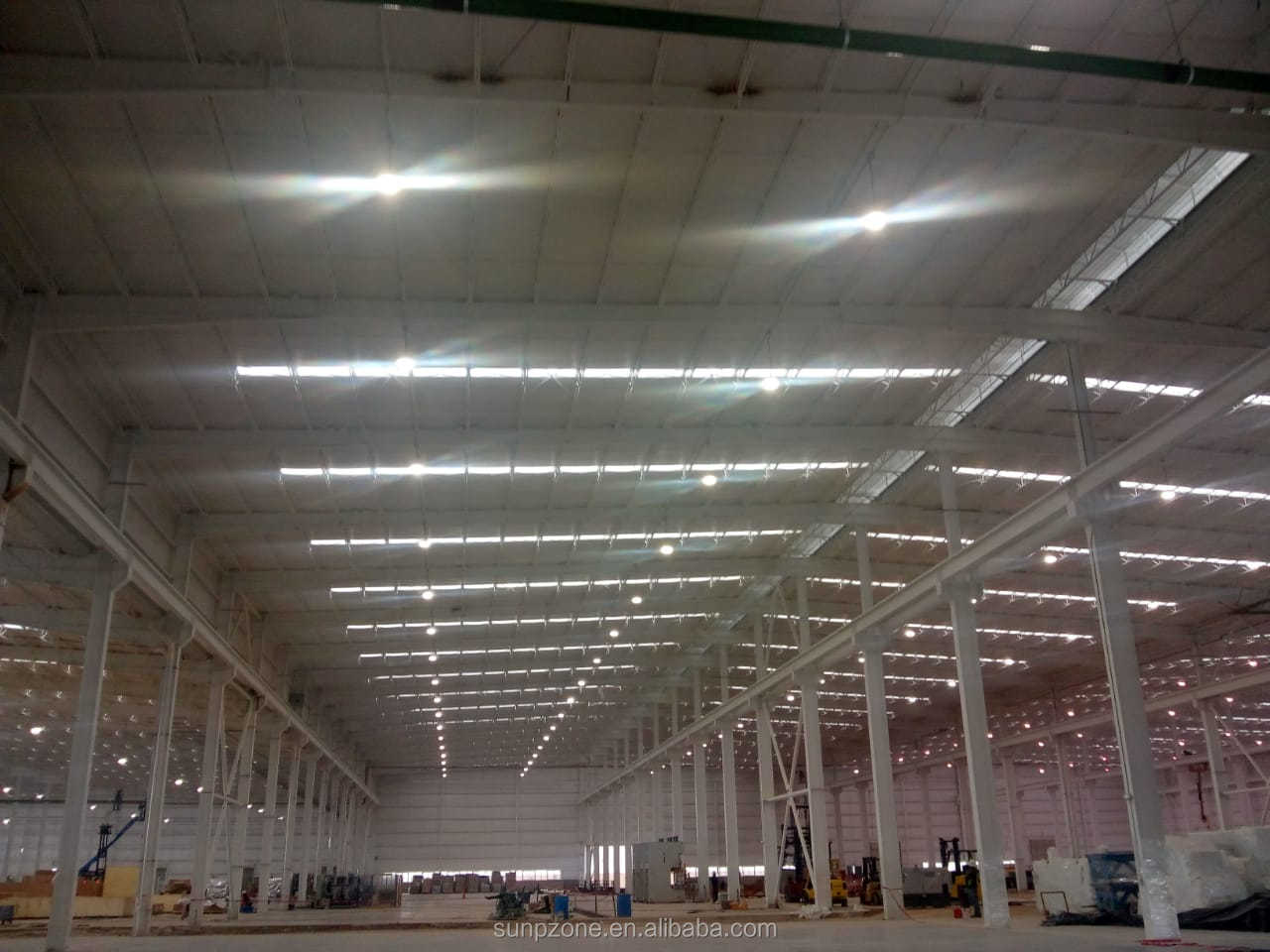

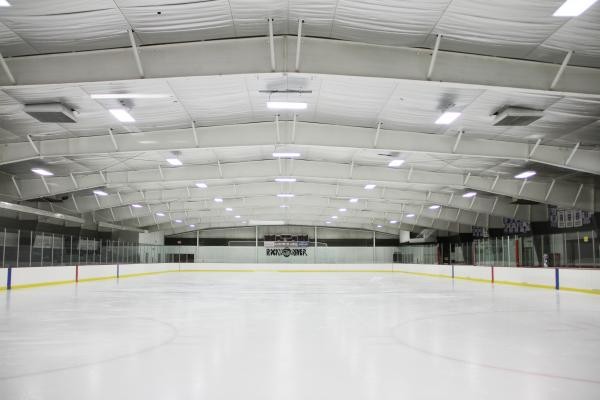

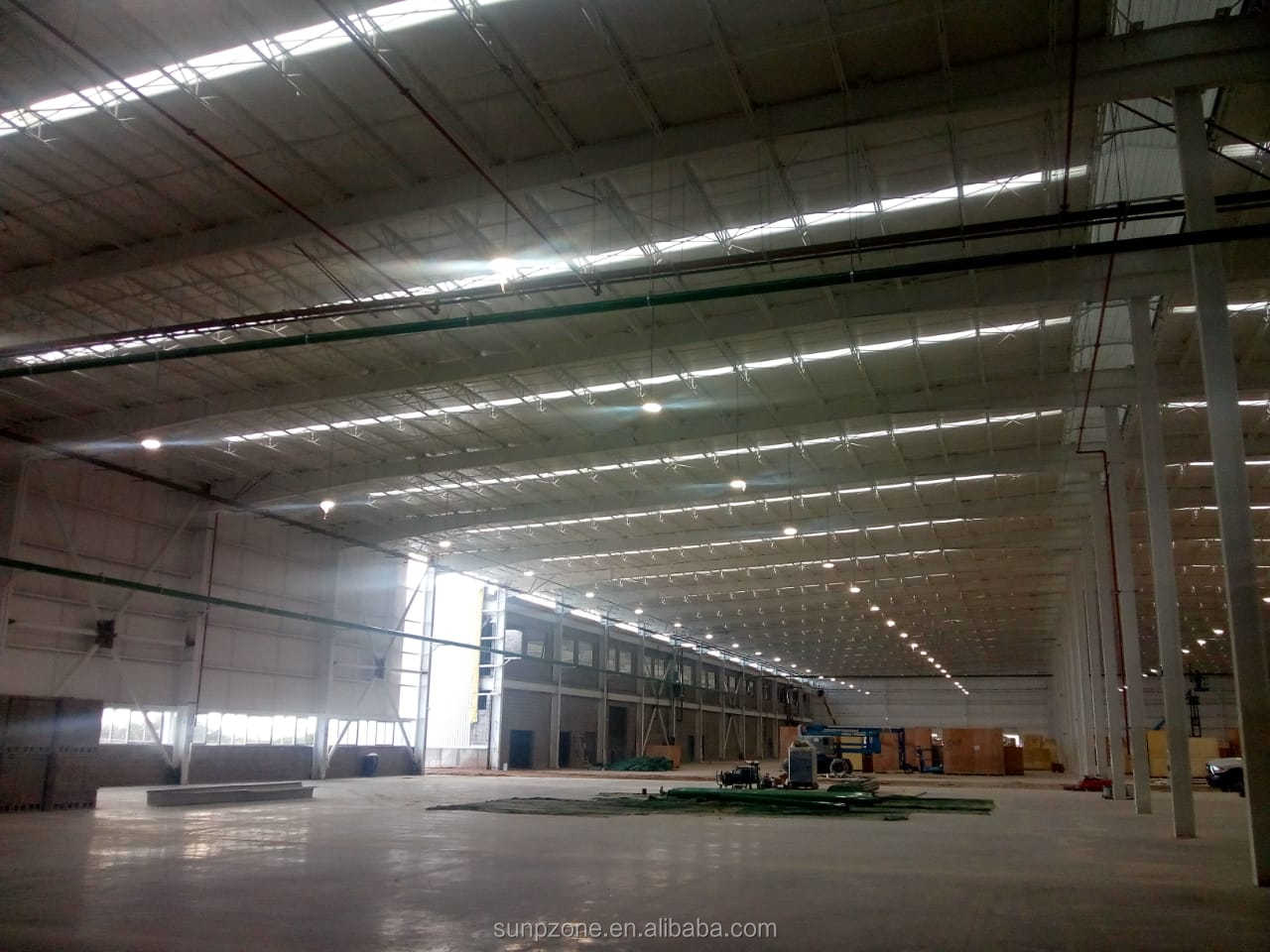

Applications

LED Suspended Linear Low Bay Light

• Warehousing

• Gymnasiums

• Light industrial spaces

• Office

• Classroom• Retail space

• Parking structure

• other large indoor spaces with mounting heights ranging from 15′ – 40′.
