Description
Quick Details
- Color Temperature(CCT): 5000K
- Lamp Luminous Efficiency(lm/w): 180
- Color Rendering Index(Ra): 70
- Support Dimmer: Yes
- Lighting solutions service: DIALux evo layout
- Product Weight（kg）: 2.9
- Lamp Luminous Flux(lm): 18000
- Lamp Body Material: Aluminum Alloy
- IP Rating: IP65
- Place of Origin: China
- Brand Name: TOCHLIGHT
- Model Number: S3-100W
- Application: Warehouse
- Light Source: LED
- Warranty(Year): 5

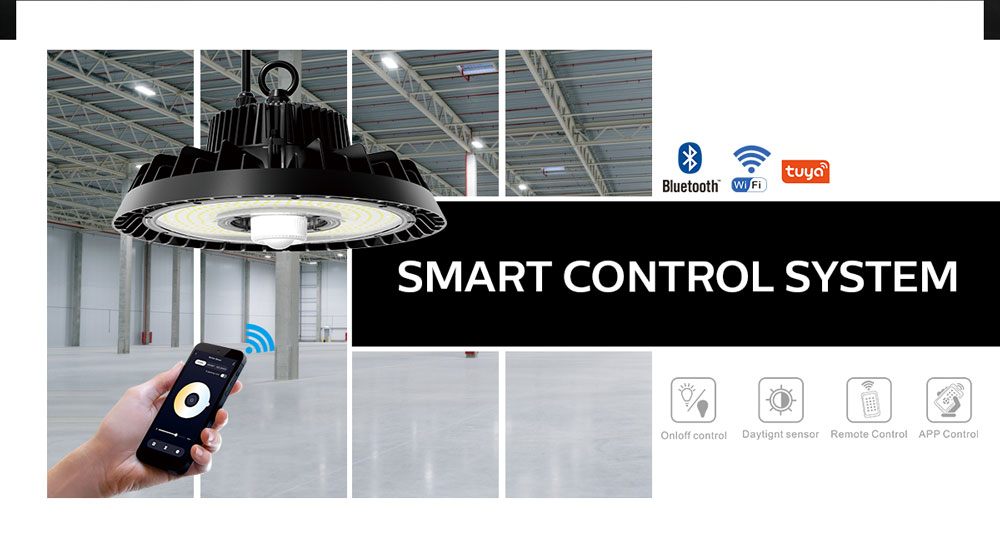

- Control Mode: Switch Control, Remote Control, Sensor control, APP Control

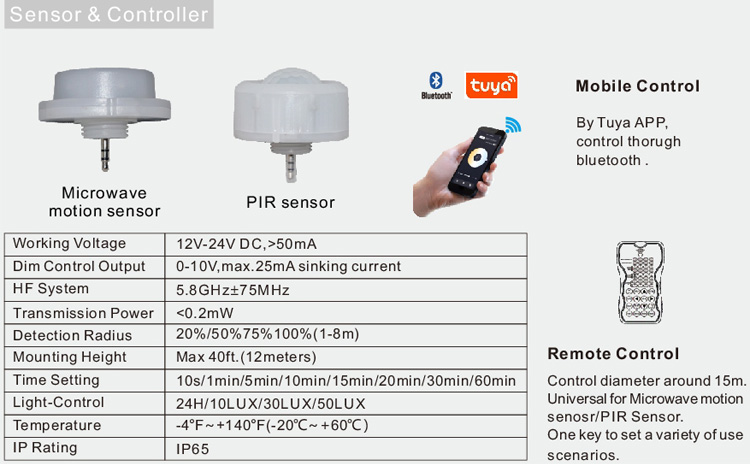

- Sensor type: Motion Sensor/PIR sensor
- Control way: Mobile/Remote control
- Height: 12 meters
- Certification: EMC,LVD,RoHS
- optional parts: Bracket, PC reflector

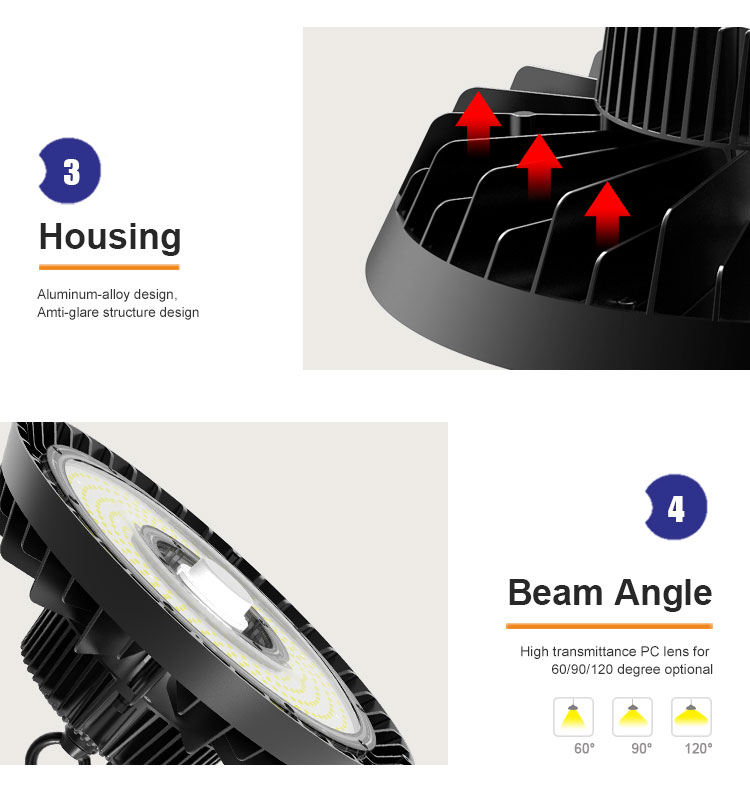

Main Features• Power Range: 100W 120W 150W 200W 240W LED high bay light.
• High Lamp Efficacy: 160-180 lm/w.

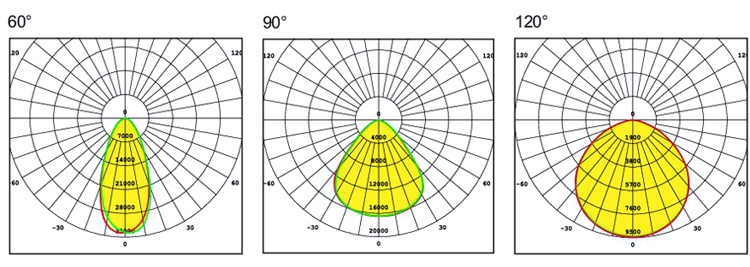

• Lens Angle: 60° , 90°, 120°
• Lifespan: >50,000 hours, 5 years warranty.

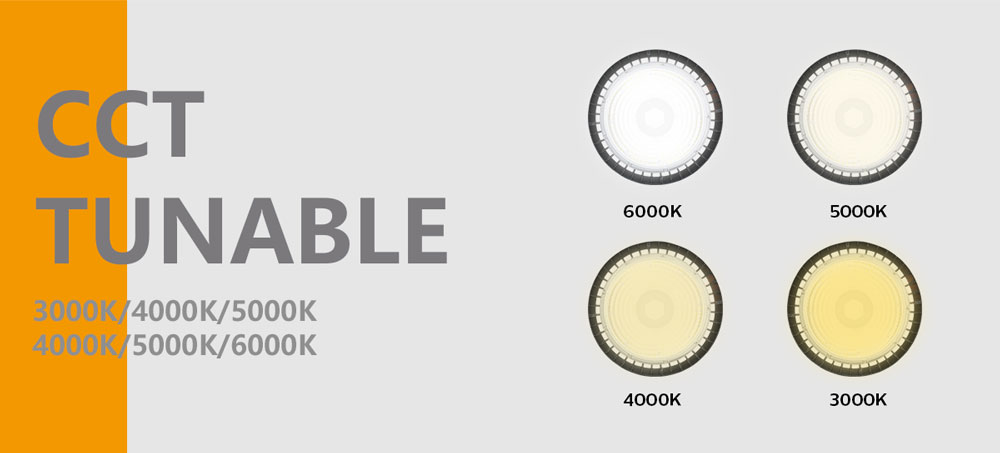

• CCT: 3000K 4000K 5000K 6000K are all available.

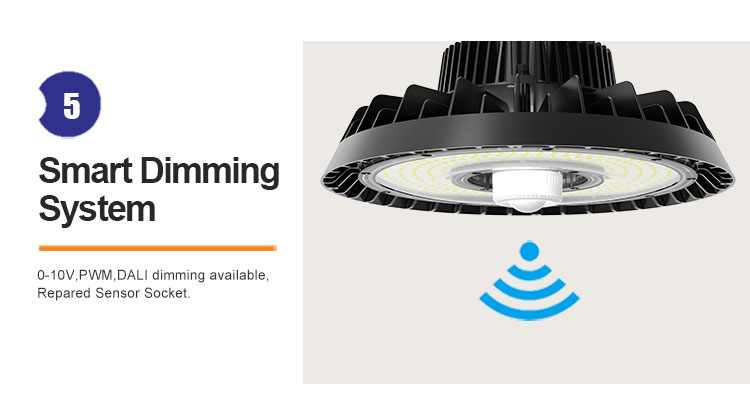

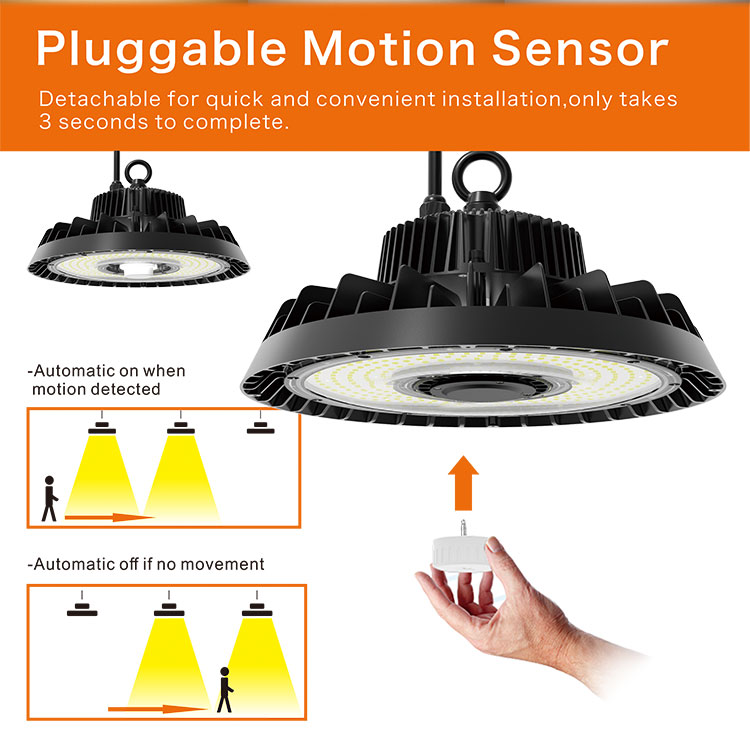

• Sensor Type: Pluggable motion sensor / WIFI control / 0-10V dimming control optional.• Control Way: Mobile App/Remote/Auto
ParametersParameters of UFO LED high bay light
Model S3-100 S3-120 S3-150 S3-200 S3-240 Power 100W 120W 150W 200W 240W Power Efficiency 0.91 Input Voltage AC 100-277V 50/60Hz Standard Efficiency 165lm/w Luminous Flux(±5%) 16500lm 19800lm 24750lm 33000lm 39600lm High Lumen efficiency 180lm/w Luminous Flux(±5%) 18000lm 21600lm 27000lm 36000lm / CCT 3000K/4000K/5000K/6000K CRI >70(>80,>90 optional) Beam Angle 60°/90°/120° Dimmable 0-10V/PWM/Microwave Motion Sensor/PIR Sensor N.W.(KG) 2.8 2.8 2.9 3.4 3.5 G.W.(KG) 3.6 3.6 3.7 4.2 4.3 IP Rate IP65 Body Material Aluminum Alloy Lens Material PC Lamp Size(mm) Ø270xH163 Ø320xH173 Packing Information(mm) 360x360x190mm Lifespan >50,000 Hours Product DetailsProduct details of UFO LED high bay light

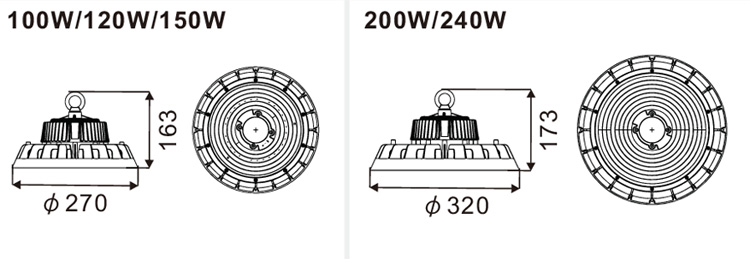

Dimension

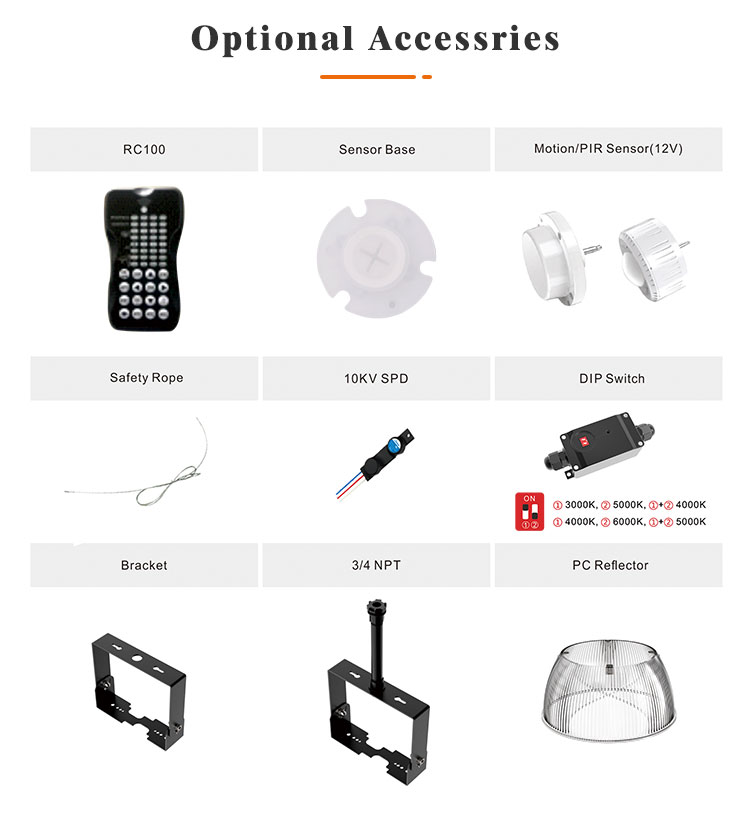

Product Accessories100W-240W UFO LED high bay light series
Contact for further details.

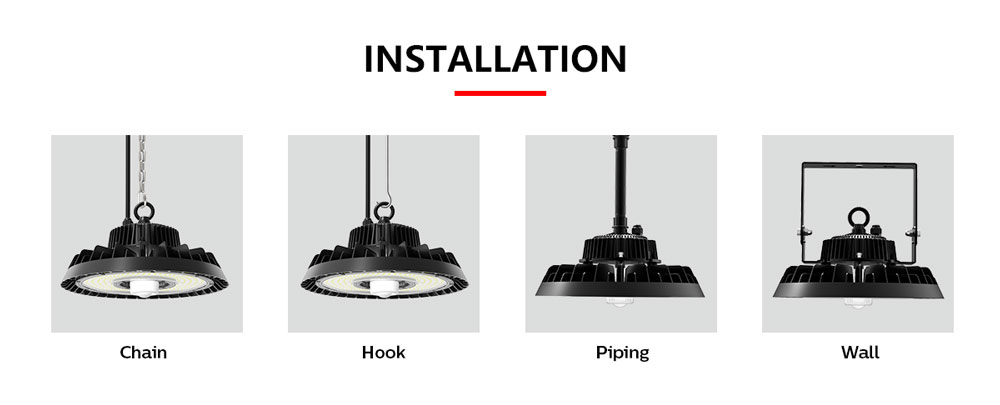

Installation
