Description

Color Temperature(CCT): 6500K

Input Voltage(V): AC 220V( ± 10%)

Lamp Luminous Efficiency(lm/w): 80

Warranty(Year): 1-Year

Color Rendering Index(Ra): 80

Support Dimmer: NO

Lighting solutions service: Project Installation

Lifespan (hours): 15000

Working Time (hours): 15000

Type: LED LOWBAY LIGHT

Light Source: LED

Power Factor: 0.9

CCT: 6500k/4000k/3000k

Luminaire light beam spread: Wide beam 100°

Material: Aluminum

POWER: 30W

Initial LED luminaire efficacy: 80 lm/W

Initial chromaticy: SDCM <5

Optical cover/lens finish: Frosted

CRI: ≥80

Net Weight (Piece): 0.579 kg

Certification: CE ROHS

Specification

Setting Information
ITEM NO	BY088P
CCT	6500K/4000K/3000K
POWER	30W
VOLT	220-240 V 50-60Hz
Luminous Flux	80 LM/WATT
CRI	Ra≥80
Guarantee	1 YEARS

Product Description

Features

Smooth energy saving: Luminaire brightness up to 3200lm, replaces high power spiral fluorescence 85W lamp, energy saving up to 54%.

Comfortable environment: Philips professional optical design, good color rendering, soft light, playing Create a comfortable light environment.

Economic relief: Using ROHS eco-friendly material for green comfort and optimization of thermal design Guaranteed long lamp life without worry, TCO <1 year.

Features

Simple and beautiful: Satisfy industrial and commercial requirements for different occasions, smooth professional design.Beautiful, enhance the space texture.

Flexible installation:3 kinds of installation methods to meet the needs of different occasions decoration, integrated lights.The design simplifies the installation steps of traditional lamps and is flexible and efficient.

Installation Diagram

Model NO	BY698P	BY687P	BY228P
Describe	LED HIGHBAY	LED HIGHBAY	LED HIGHBAY
Power	85-225W	200W-240W	60W-200W
Input Voltage	220-240V	220-240V	220-240V

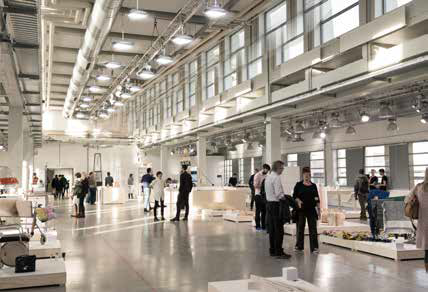

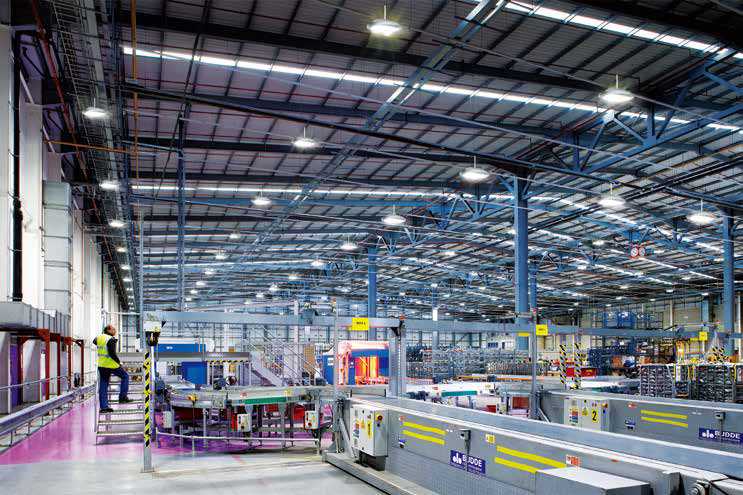

Applications
