Product Description
|
SPECIFICATIONS
|

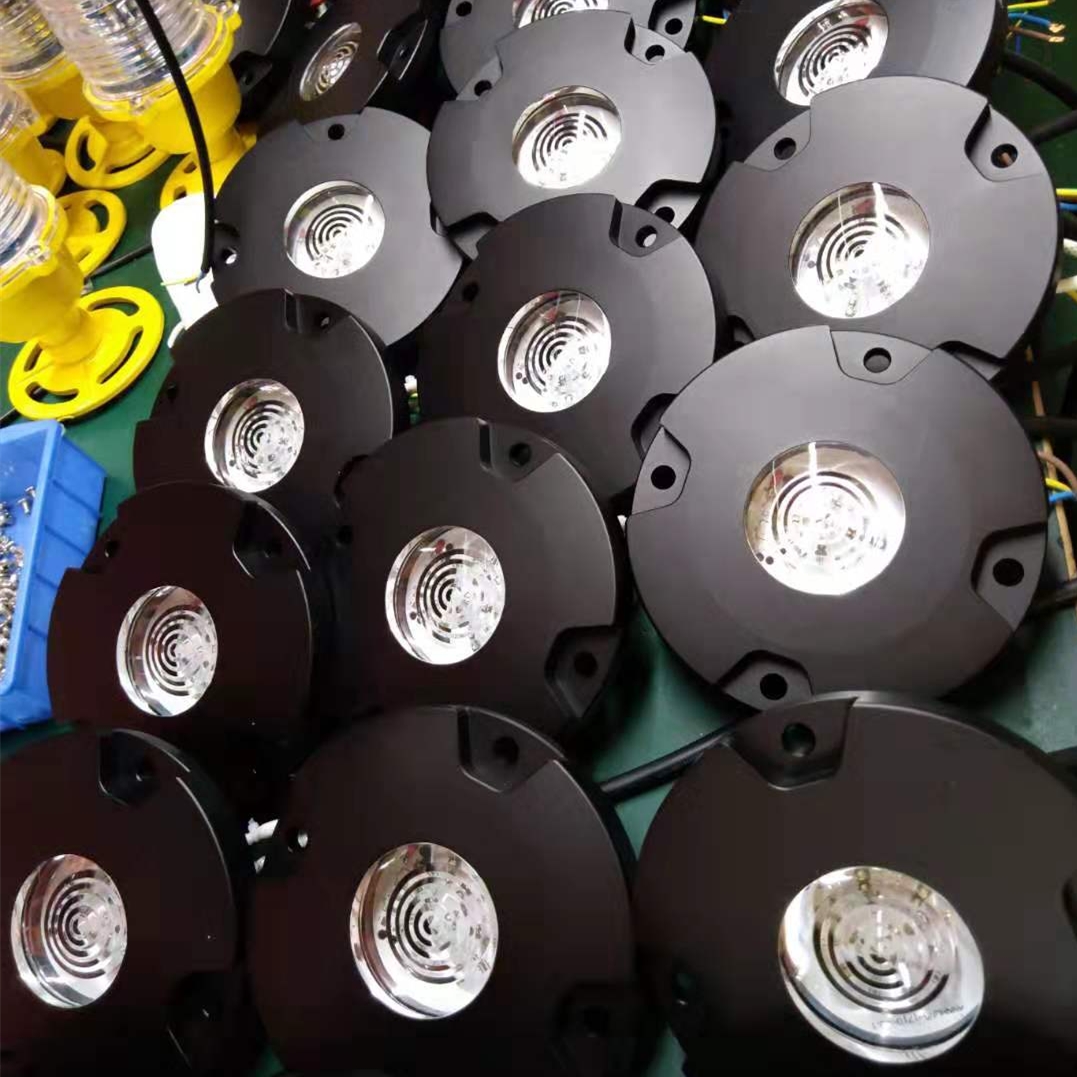

JV-HP/A Touchdown and lift-off Area Inset Light
|
|
Light Characteristics
|
|
|
Light Source
|
Ultra high intensity LED
|
|
Available Colors
|

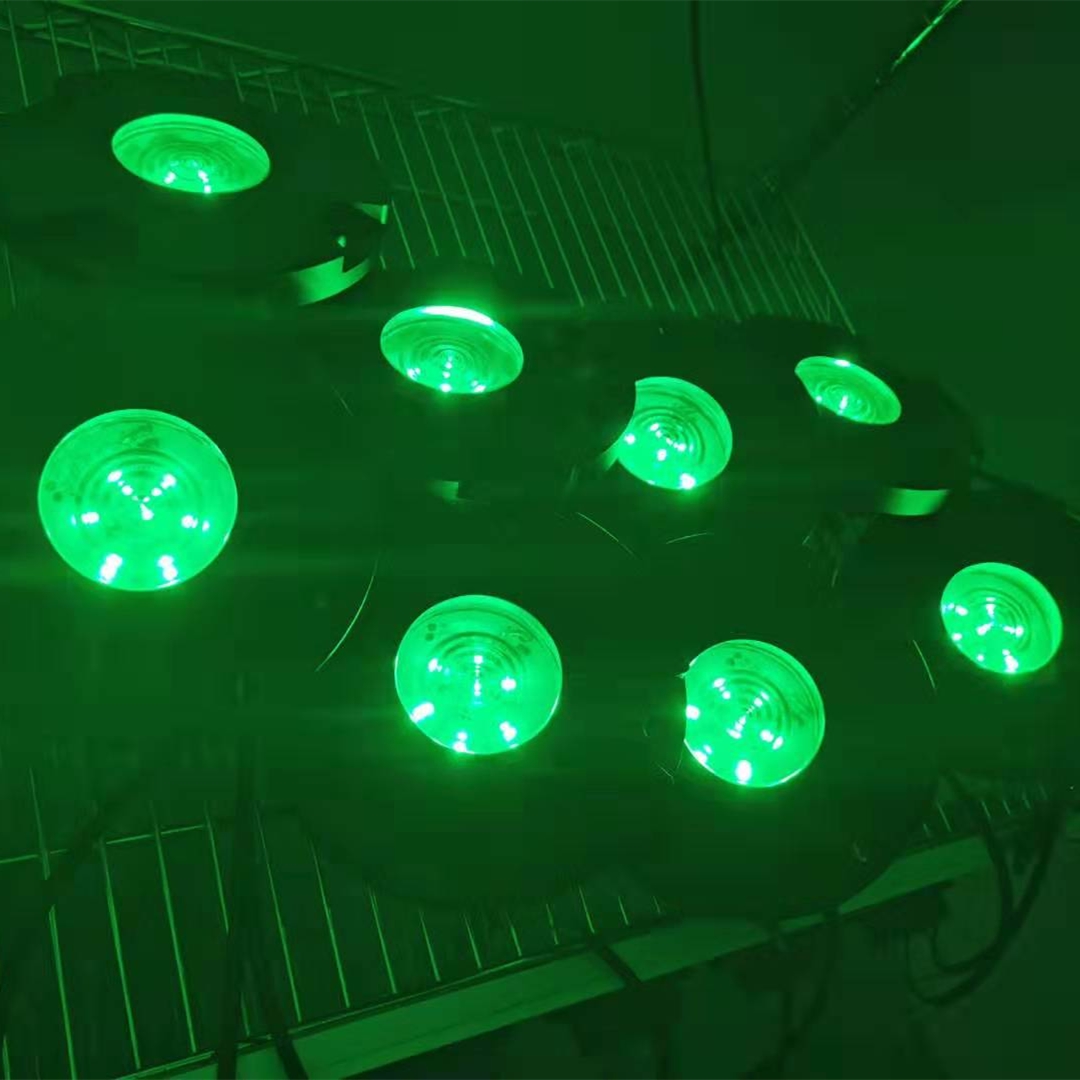

Green, White (Other color is available)
|
|
Intensity(cd)
|
≥100cd
|
|
Flash Characteristics
|
Steady burning
|
|
Operation Mode
|
24hours operation
|
|
LED Life Experience(hours)
|
>100,000
|
|
Electrical Characteristics
|
|
|
Operating Voltage
|
120VAC, 220VAC, 48VDC, 24VDC or others
|
|
Power(W)
|
20
|
|
Physical Characteristics
|
|
|
Body Material
|
Anodized Die-casting aluminum
|
|
Base Material
|
Painted aluminum
|
|
Overall size(mm)
|
194×194×138
|
|
Installation size(mm)
|
199×199×146
|
|
Weight(kg)
|
4.9
|
|
Product Life Expectancy
|
Average 5 years
|
|
Environmental Factors
|
|
|
Ambient Temperature(℃)
-55℃~+70℃ |
-55~70
|
|
Humidity
|
0~100%
|
|
Wind Speed
|
80m/s
|
|
Waterproof
|
IP68
|
|
Compliance
|
|
|
ICAO
|
ICAO Annex 14 Volume ǁ Heliports 5.3.7, 5.3.8
|
|
Options Available
|
Infrared LED compatible for NVG (Night
|
|
Vision Goggles)
|
|
|
Marine Treated
|
|
|
Anodized color
|
Features:
Electrical:
* LED light source power saving consumption and maintenance working mode, 95% less power than equivalent incandescent light
* Power supply available In 120VAC, 220VAC, 48VDC, 24VDC
* LED light source power saving consumption and maintenance working mode, 95% less power than equivalent incandescent light
* Power supply available In 120VAC, 220VAC, 48VDC, 24VDC
Physical:
* Pressure resistance lens allowed the vehicles go through on light
* Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing
* IP68 waterproof ensure light work fine underground
* Pressure resistance lens allowed the vehicles go through on light
* Die-casting aluminum covered by black hard anodizing layer have good corrosion protection and load bearing
* IP68 waterproof ensure light work fine underground
Compliance:
* ICAO Annex 14 Volume ǁ Heliports 5.3.7, 5.3.8
* FAA AC 150/5390-2B Heliport Design Guide
* CAP437 (Offshore helipad)
* FAA AC 150/5390-2B Heliport Design Guide
* CAP437 (Offshore helipad)
Application:
* Helipad/Heliport Touch-down and Lift-off area
* Heliport Aiming point marking
* Helideck
* Heliport Aiming point marking
* Helideck
